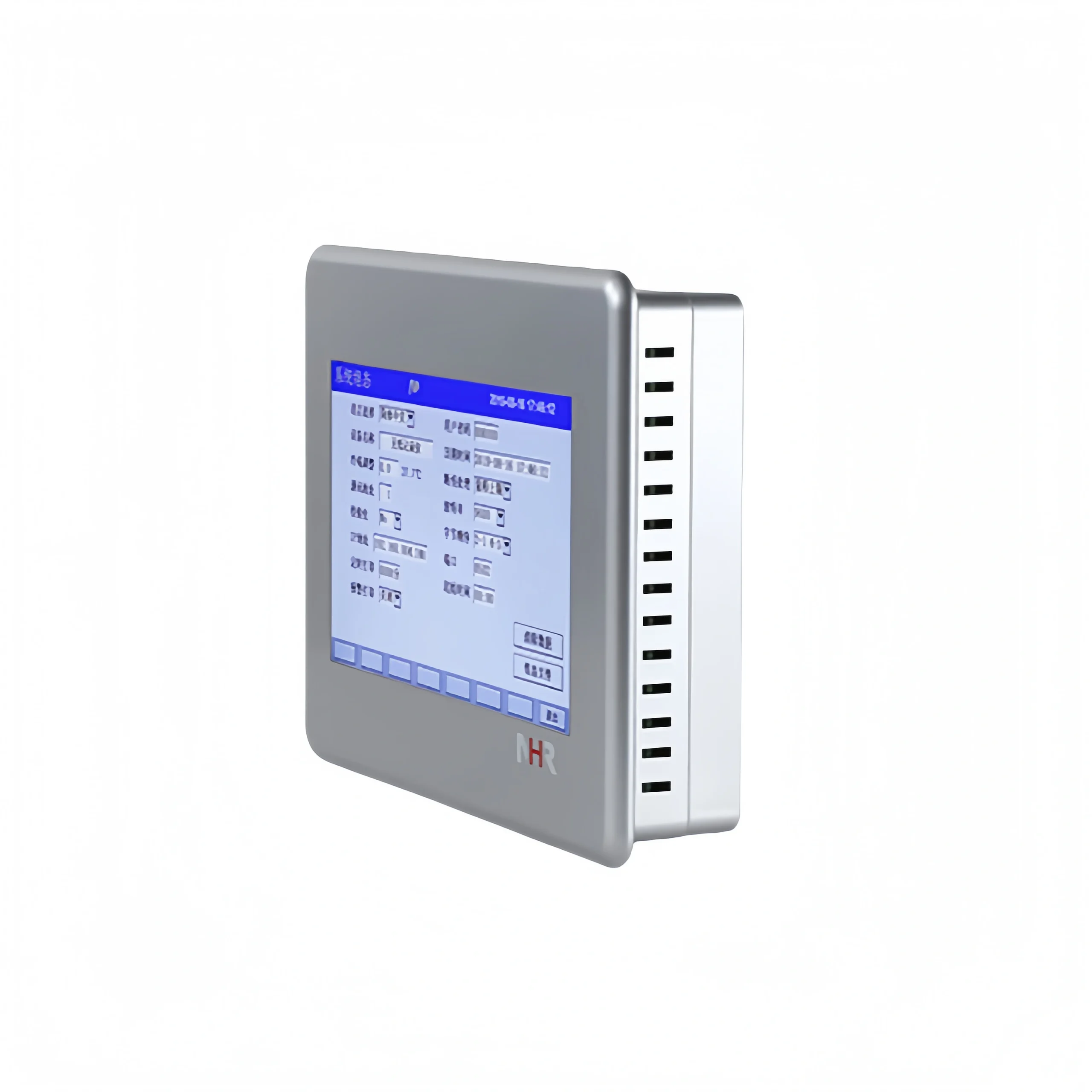

Paperless Recorder-Intelligent Data Management

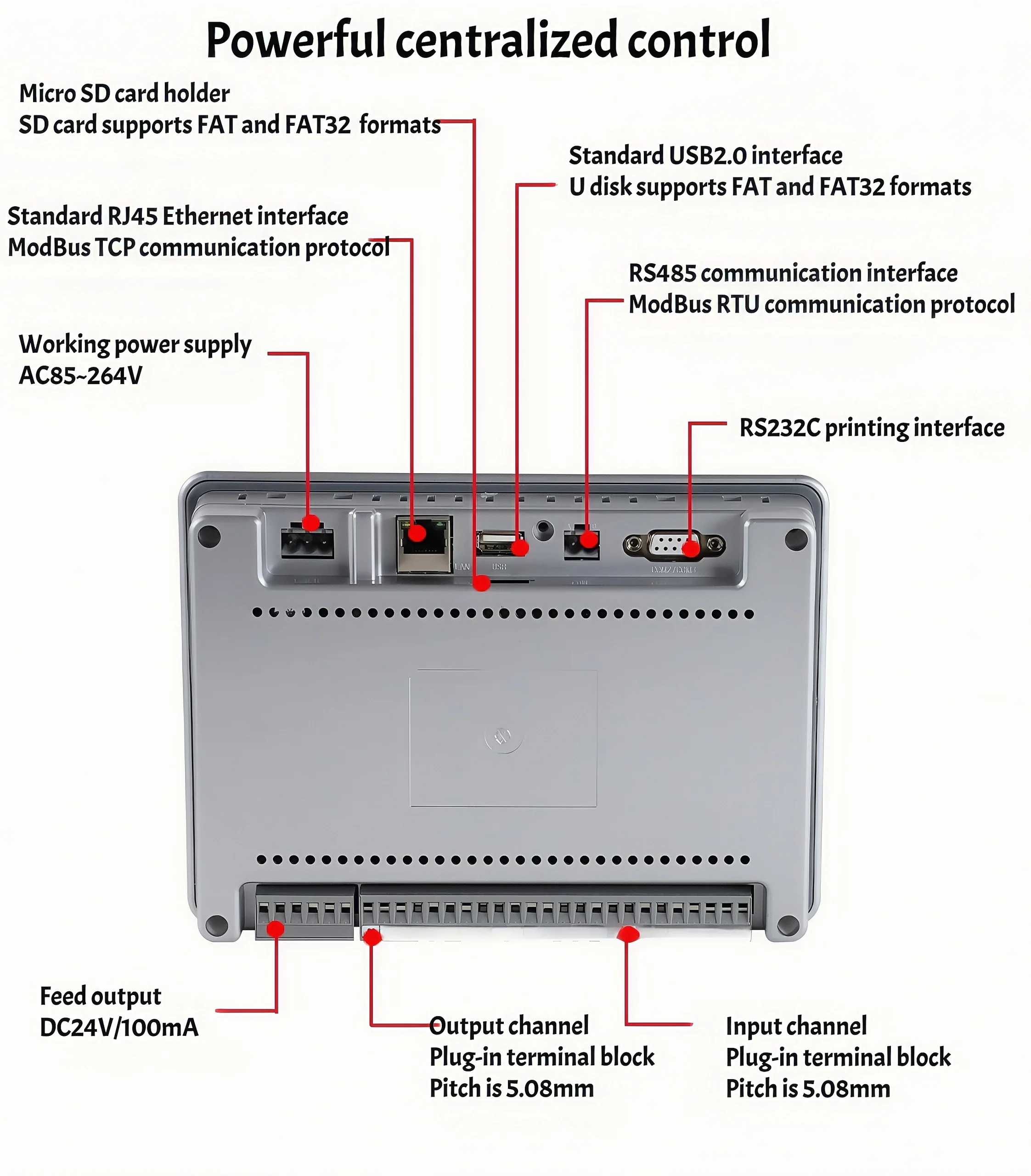

The paperless recorder is an intelligent data display device. The paperless recorder adopts a new large-scale integrated circuit, and adopts reliable protection and strong anti-interference design for input, output, power supply and signal. 8-way universal signal input (configurable input: standard voltage, standard current, thermocouple, thermal resistance, millivolt, etc.). Up to 10 types of signals can be input. It can have 4 alarm outputs, 1 feed output, RS485 communication interface, Ethernet interface, micro printer interface and USB interface, SD card socket. It has powerful display function. There are real-time curve display, historical curve recall, bar graph display, and alarm status display.

Support customization
OEM
Support Chinese and English bilingual switching
Ultra-thin, ultra-light and portable
Touch screen
High resolution
Multi-channel input: 10
With serial port communication
With serial port printing
With Ethernet communication
With USB transfer function
With SD card expansion function
High accuracy: 0.5%
T6 input method

Get A Free Quote

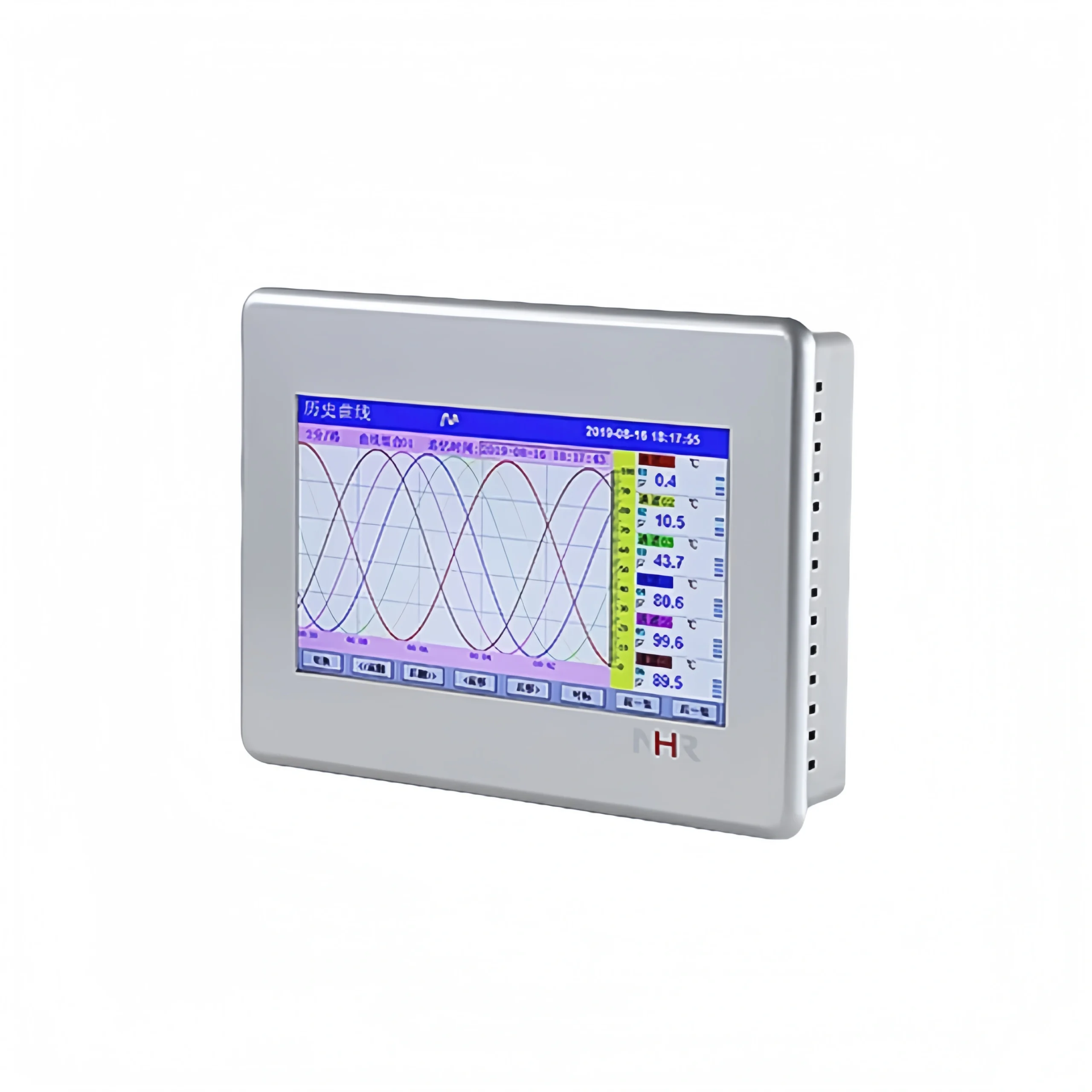

Introduction of Paperless Recorder

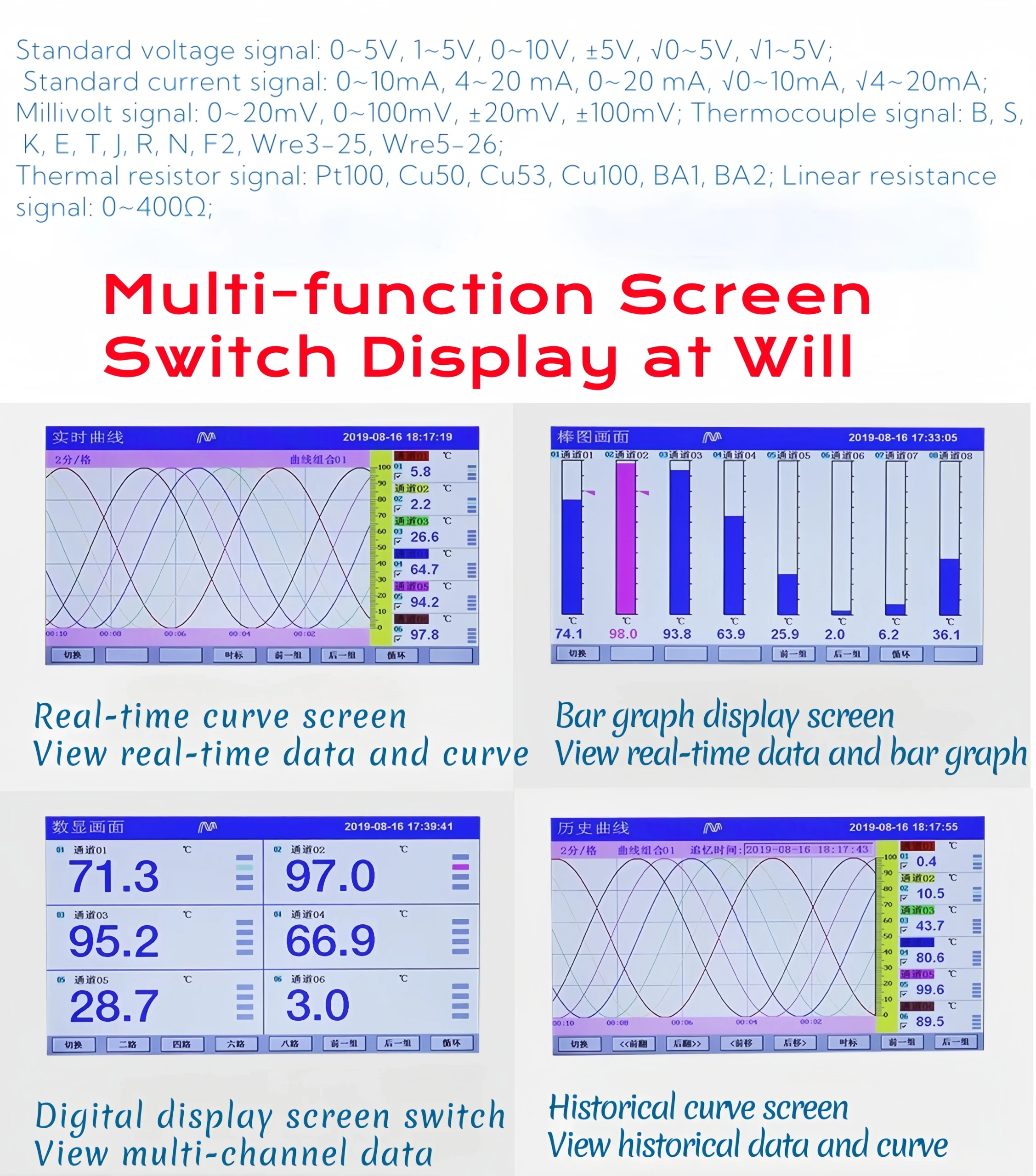

The paperless recorder has multiple operation display screens and configuration screens, with a clear display, a large amount of information, and convenient configuration. Users can easily operate and use the instrument without professional training. After the instrument is connected to the power supply, the system initialization screen is displayed. After the system is initialized, enter the real-time curve screen. The paperless recorder has the function of communicating with the host computer, and the host computer can complete the parameter setting, data acquisition, monitoring and other functions of the lower computer.

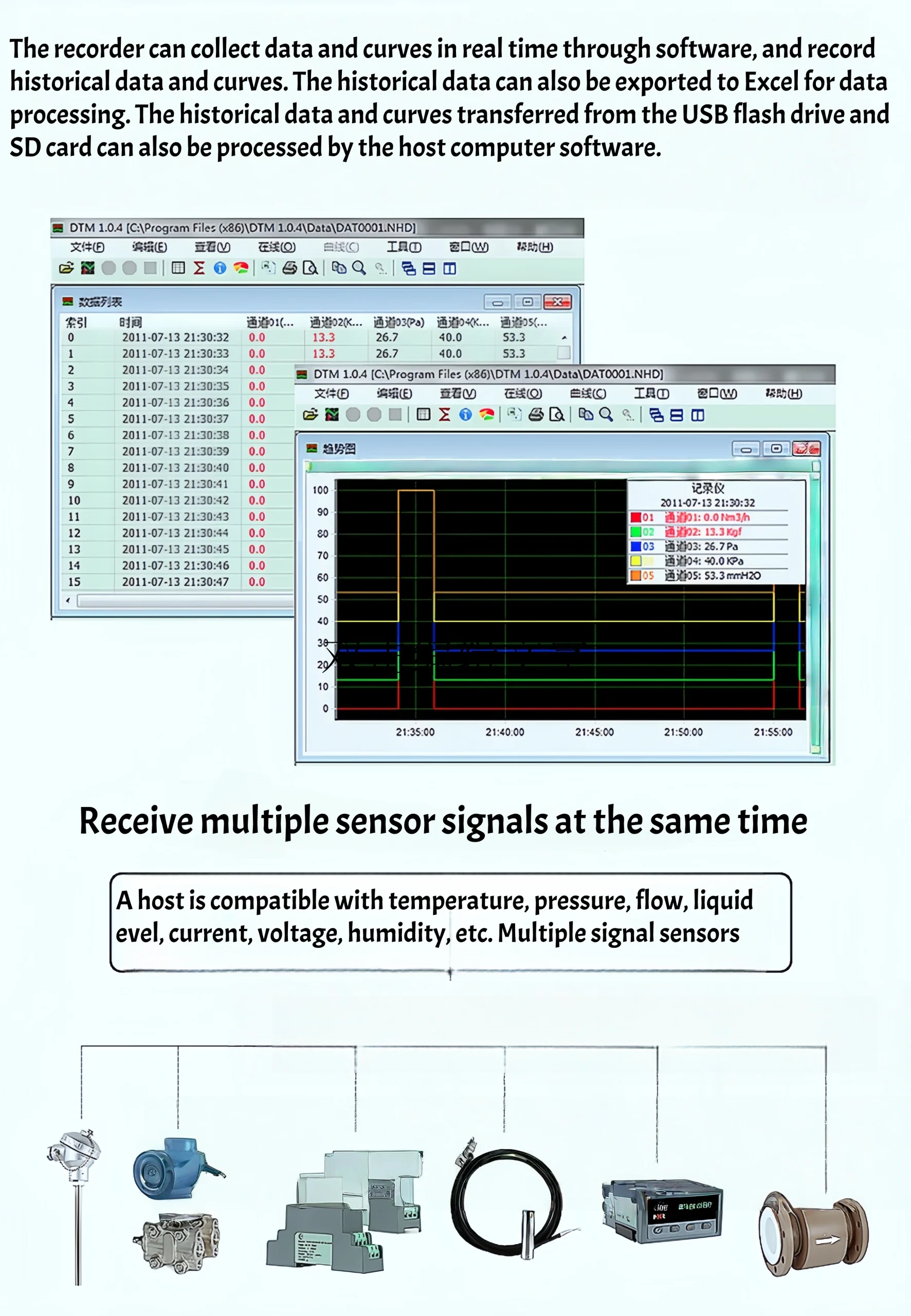

With the industrial control software, under Chinese WINDOWS, it can complete dynamic screen display, instrument data setting, chart generation, storage record, report printing and other functions. It can also collect data and curves in real time through our company’s upper computer management software, and record historical data and curves. Historical data and curves can also be exported to Excel for data processing.

It can be used with various sensors: pressure sensor, liquid level sensor, ultrasonic flowmeter, electromagnetic flowmeter, Coriolis mass flowmeter, temperature sensor. By using it with sensors, various data such as liquid level, pressure, flow and temperature can be displayed in real time. An intelligent management system makes your industrial process smoother.

Technical Parameters of Paperless Recorder

Measurement Input
Input Signal	Current: 0 – 20mA, 0 – 10mA, 4 – 20mA, √0 – 10mA and √4 – 20mA Voltage: 0 – 5V, 1 – 5V, 0 – 10V, ±5V, √0 – 5V , √1 – 5V, 0 – 20 mV, 0 – 100mV, ±20mV and ±100mV Thermal resistance: Pt100, Cu50, Cu53, Cu100, BA1and BA2 Linear resistance: 0 – 400Ω Thermocouple: B, S, K, E, T, J, R, N, F2, Wre3-25 and Wre5-26
Output
Output Signal	Alarm output: Output through normally open contacts of the relay; Contact capacity: 1A/250VAC and1A/24VDC (resistive load) (! Note: If the load exceeds the relay contact capacity, do not load directly.)
Output Signal	Feed output: DC24V±10%, load current: ≤100mA
	Communication output： RS485 communication port: – Baud rates range: 2400 – 19200bps (settable); – The communication distance of the RS-485 port is 1 km. – The communication distance of the RS-485 port is 1 km. Ethernet communication port: – Communication speed: 10/100M, auto.
Integrated Parameters
Measurement Accuracy	0.2%FS±1d
Display Refresh Cycle	1 second
Setting Mode	Parameter settings are locked by password and the set value can be kept permanently after powering off the instrument.
Display mode	Seven-inch 800*480 lattice four-line resistance touch screen with sound touch sensitivity; TFT high brightness color graph LCD; LED backlight creates clear images and a wide angle of view; The content displayed includes Chinese characters, numbers, process curves and bar graphs; Touch the screen to switch between screens, search the history data and change the time scale of curves.
Data Backup	Supports data backup and offloading by USB devices and SD cards; Maximum capacity: 32GB; Supports the FAT and FAT32 formats.
Storage Capacity	The capacity of the inner Flash storage is 64M Byte.
Record Interval	Nine levels are optional, including 1s, 2s, 4s, 6s, 15s, 30s, 60s, 120s and 240s.
Storage Length	48 days (interval：1s) —11650 days (interval: 240s)
(Continuous recording)	Formula: Recording time (day) =（6410241024recording intervals）/(Channel number 2243600) (!Note: The calculation of the channel number: the program will divide the channel number to 2 categories: 4 and 8. When the channel number of the instrument falls between the two categories, the larger number will be used as the channel number for calculation.)
Working Environment	Environment temperature: -10 – 50℃; Relative humidity: 10 – 90% RH (non-condensing); Prevented from strongly corrosive gases. (! Note: If the environment of the working site is bad, be sure to specify when ordering.)
Power Supply	AC85 – 264V (power switch), 50/60Hz
Power Consumption	≤10W

Get a Quick Quote of Paperless Recorder

Sino-Insts’ intelligent paperless recorder is accurate and efficient. It is your best partner for later data management. Sino-Inst has been focusing on instrument measurement for more than 20 years. We have the most comprehensive application cases. If you need help. Please contact us, we are online at any time.

Products Categories

Coriolis Mass Flow Meter

Thermal Gas Mass Flow Meter

Differential Pressure Flow Meter

Electromagnetic Flowmeter

Ultrasonic Flow Meter

Vortex Flowmeter

Turbine Flowmeter

Positive Displacement Flow Meters

Compact Pressure Sensor/Transmitter

High Temperature Pressure Transmitter

Cryogenic Pressure Transducer

High Temperature Melt Pressure Transmitter

Explosion-Proof Pressure Transmitter

Differential Pressure Transmitter

Hydrostatic Level Transmitter

Ultrasonic Level Transmitter

Radar Level Meter

Industrial Recorder/Paperless Recorder

Solid Powder Flowmeter

Float Level Sensors / Switches

Capacitive level sensor

Level Switches/Controllers

Flow Switch/Flow Controller

Torque Sensor

Get A Free Quote

Applications of Paperless Recorder:

The paperless recorder is an intelligent device that is used for data collection, recording and monitoring. Sino-Inst paperless recorder relies on its high accuracy, real-time and convenience. It plays an important role in all walks of life and improves work efficiency and data management.

Production process monitoring
Water quality monitoring
Patient monitoring
Drug storage and transportation
Agriculture
Greenhouse environment monitoring
Soil monitoring
Experimental data recording
Equipment R&D testing
Energy management
Power monitoring
Energy consumption analysis
Transportation
Vehicle status monitoring
Cargo status monitoring

More Detail

Paperless Recorder Input Signal Type:

B, S, K, E, T, J, R, N, F2, Wre3-25, Wre5-26, Cu50, Cu53, Cu100, Pt100, BA1, BA2, 0～400Ω, 0～20mV, 0～100mV, ±20mV, ±100mV, 0～20mA, 0～10mA, 4～20 mA, 0～5V, 1～5V, ±5V, 0～10V, √0～10 mA, √4～20 mA, √0～5V, √1～5V, none The allowed range of each signal is as follows:

Signal type	Range	Signal type	Range	Signal type	Range
B	400～1800℃	Cu50	-50.0～150.0℃	0～20mA	-9999～99999
S	-50～1600℃	Cu53	-50.0～150.0℃	0～10mA	-9999～99999
K	-200～1300℃	Cu100	-50.0～150.0℃	4～20mA	-9999～99999
E	-200～1000℃	Pt100	-200.0～650.0℃	0～5V	-9999～99999
T	-200.0～400.0℃	BA1	-200.0～600.0℃	1～5V	-9999～99999
J	-200～1200℃	BA2	-200.0～600.0℃	±5V	-9999～99999
R	-50～1600℃	0～400ΩLinear resistance	-9999～99999	0～10V	-9999～99999
N	-200～1300℃	0～20mV	-9999～99999	√0～10mA	-9999～99999
F2	700～2000℃	0～100mV	-9999～99999	√0～20mA	-9999～99999
Wre3-25	0～2300℃	±20mV	-9999～99999	√0～5V	-9999～99999
Wre5-26	0～2300℃	±100mV	-9999～99999	√1～5V	-9999～99999

How does a Paperless Recorder Work?

A paperless recorder is an automated testing device that integrates measurement, display and recording functions. It converts the measured physical quantity into an electrical signal through a high-precision sensor, and then performs amplification, filtering, linear correction and other processing, and finally converts it into a digital signal. These digital signals are stored in the internal memory or directly transmitted to the computer system after A/D conversion. Users can manage, analyze, process and query the data through software.
