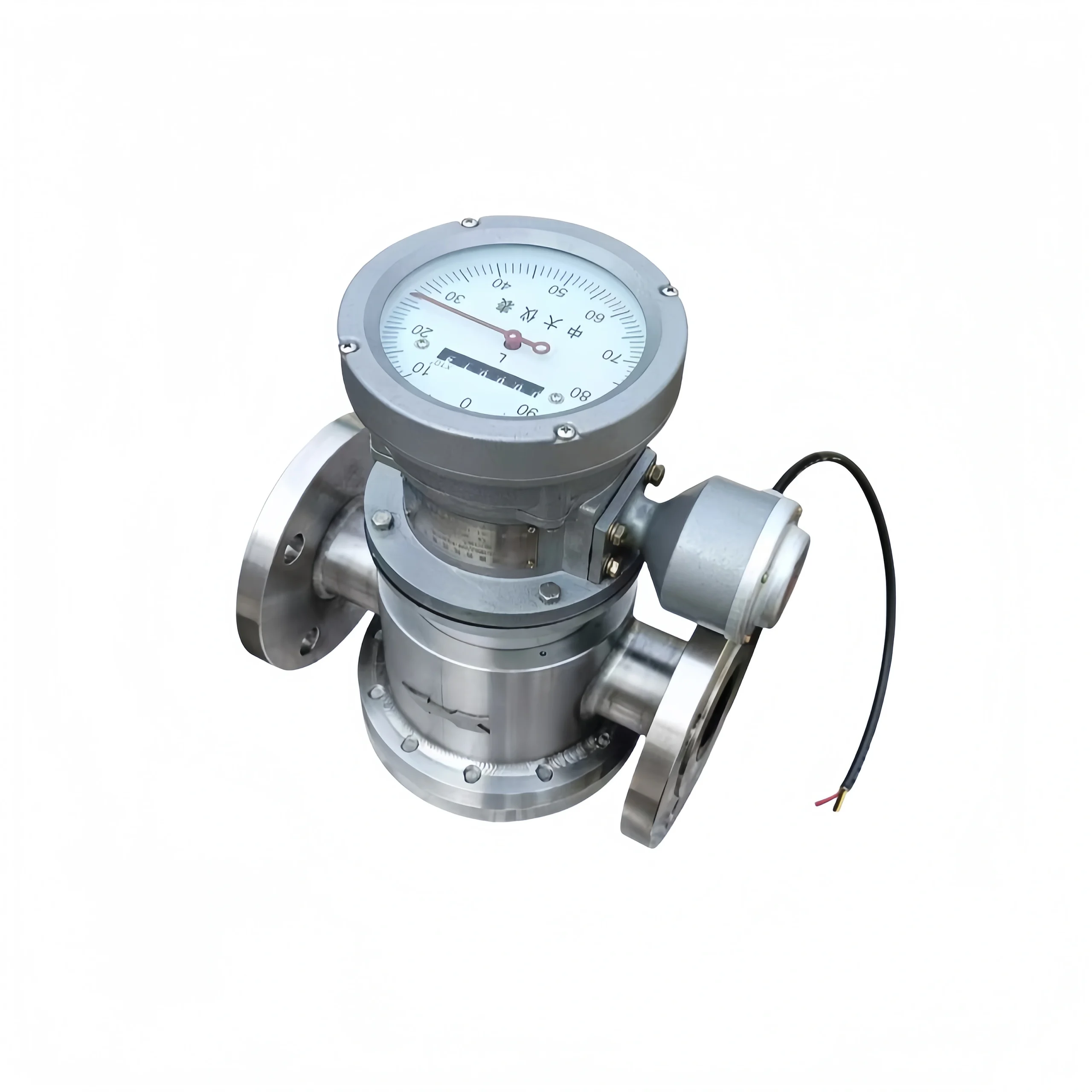

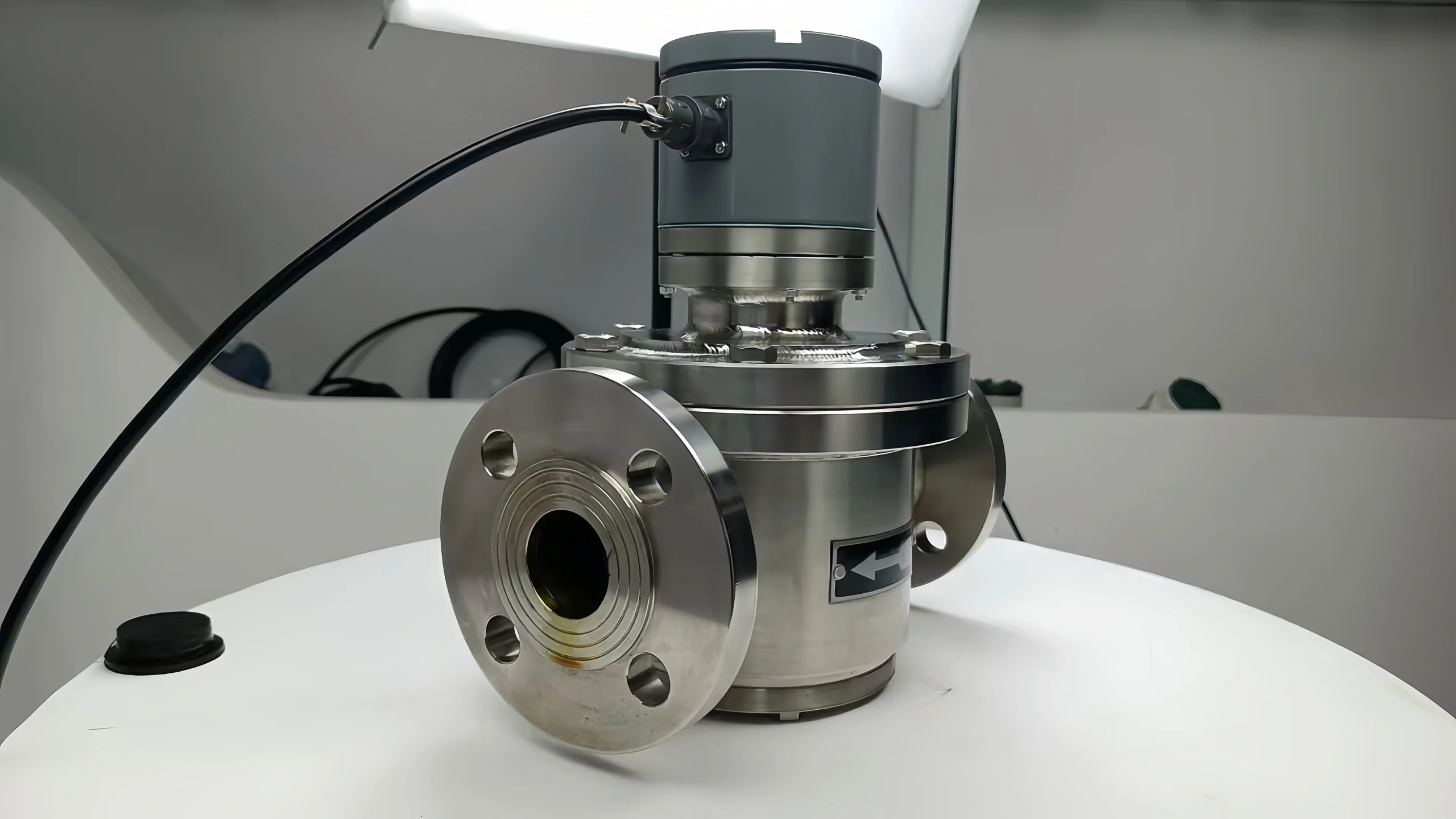

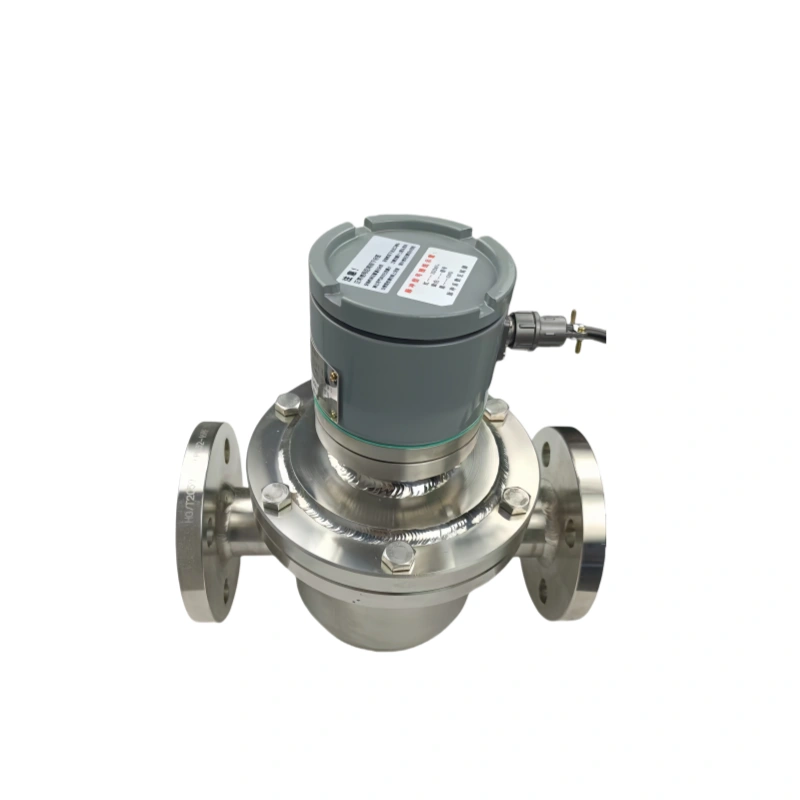

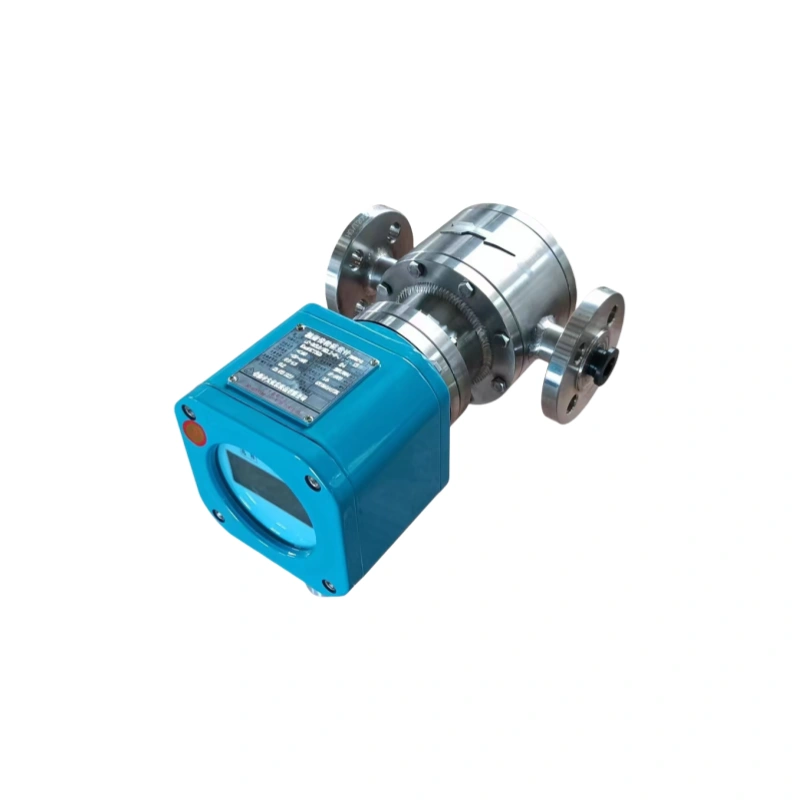

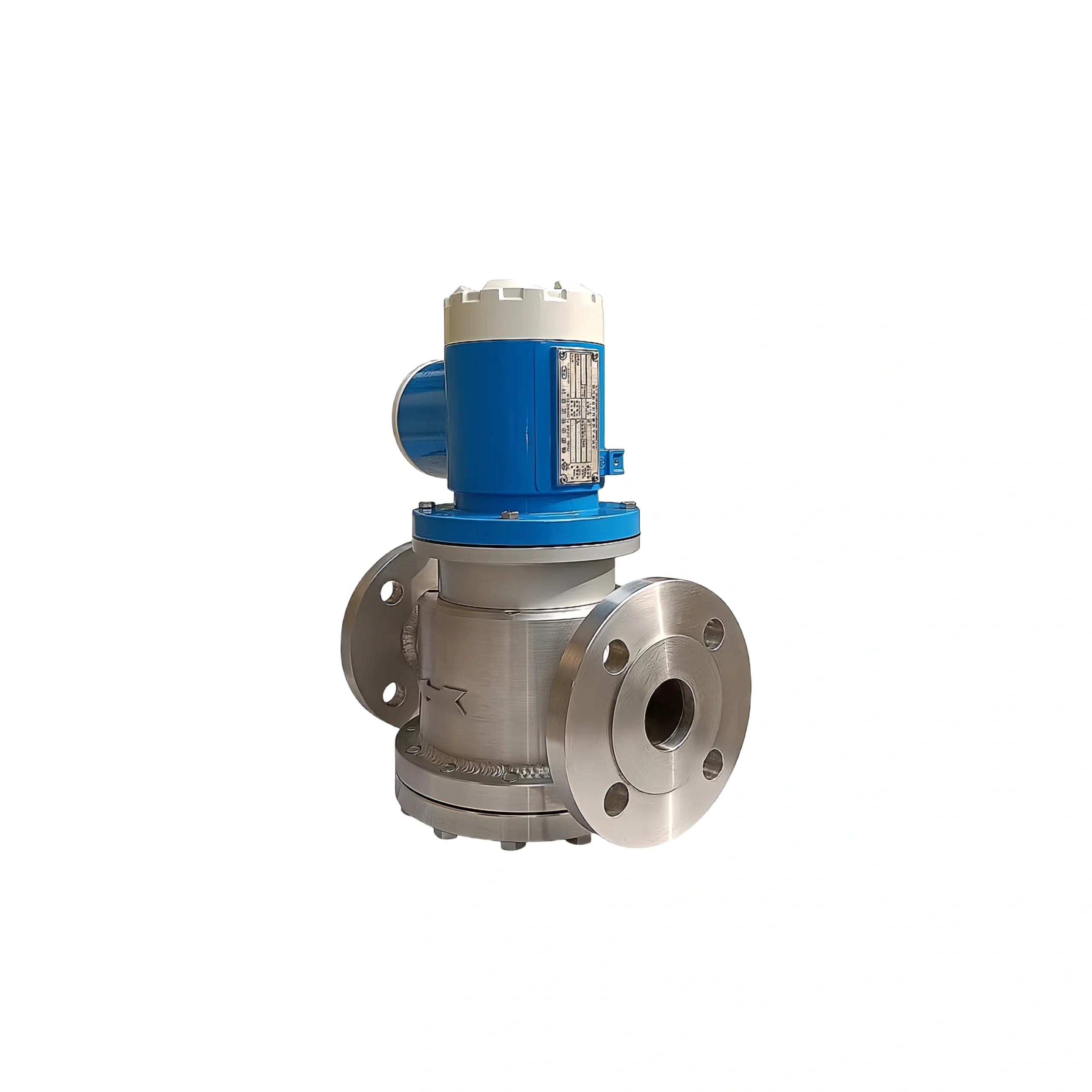

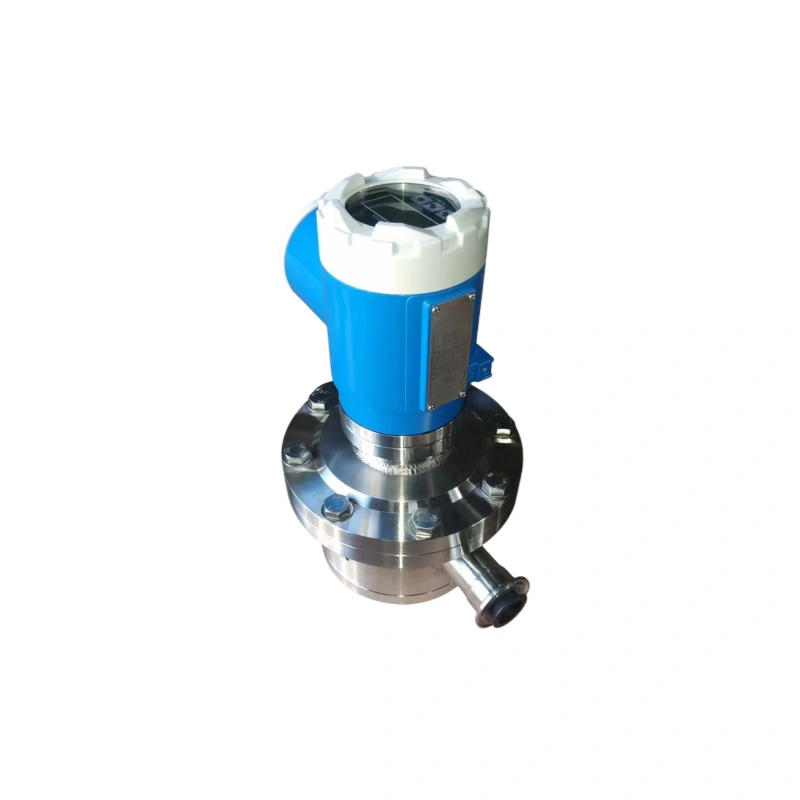

Stainless Steel Flow Meter with Oval Gear

Stainless steel flow meter can measure the flow of liquids with higher metering requirements. And can withstand high pressure and high temperature applications. Sino-Inst’s stainless steel flow meter is mostly used for food liquids, corrosive and high viscosity liquids. It can meet your different measurement needs. Stainless steel materials 304 and 316 are optional.

Support customization
OEM
Can measure clean liquids
High measurement accuracy: 0.2% and 0.5%
High repeatability
Simple structure, sturdy, reliable operation
Measurement of high viscosity media
Cast iron, cast stainless steel are optional
Easy to install
Used for metering of high pressure, high temperature and corrosive media
Explosion-proof and waterproof

Get A Free Quote

Introduction of Stainless Steel Flow Meter

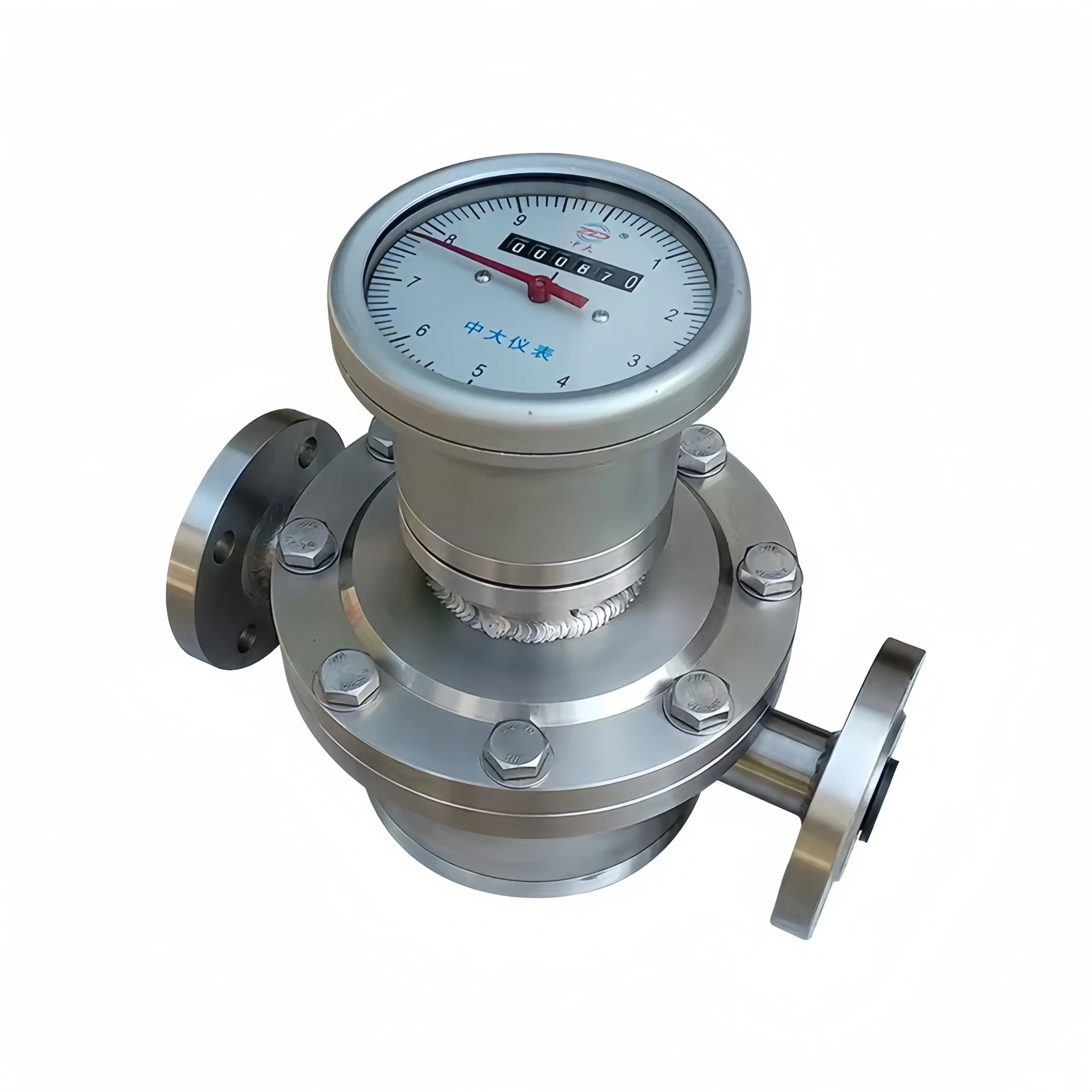

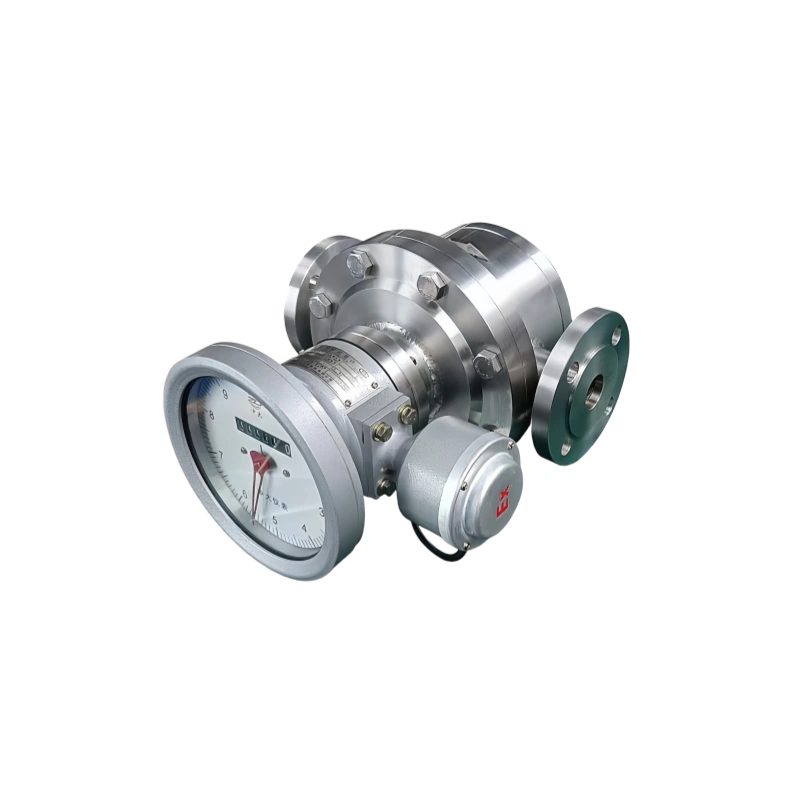

Stainless steel oval gear flowmeter is a volumetric flowmeter that continuously or intermittently measures the flow of liquids in pipelines. It is equipped with a pointer and a character wheel accumulation device. The liquid flow and instantaneous flow through the pipeline can be directly displayed on site. The additional signaling device in the counting mechanism can be matched with the electric display instrument. It is suitable for flow measurement in the petroleum, chemical, chemical fiber, transportation, commerce, food, medicine and health departments.

We have the PTFE flow meter you can choose.

Technical Parameters of Stainless Steel Flow Meter

Oval gear flowmeter of iron casting type, cast steel type and stainless steel type

model	LC—A Iron casting type	LC—B Stainless steel type	LC—E Cast steel type
Nominal pressure MPa	1.0 1.6	2.5 4.0 6.4	1.0 1.6
Medium temp.	Conventional pointer type: -20~+80℃；
	High-temperature pointer type: -20~+200℃；
	Conventional LCD type: -20~+60℃；
	High-temperature LCD type: -20~+150℃；
Accuracy	0.50%
Nominal diameter	Viscosity: 0.6—2mPa.s	Viscosity: 2—200mPa.s
10	0.2-0.4 m³/h	0.08-0.4 m³/h
15	0.6-1.5 m³/h	0.3-1.5 m³/h
20	0.8-3 m³/h	0.6—3 m³/h
25	1.2-6 m³/h	0.8-6 m³/h
40	5-15 m³/h	3-15 m³/h
50	6-24 m³/h	4-24 m³/h
65	10-40 m³/h	8-40 m³/h
80(light type)	10-40 m³/h	8-40 m³/h
80(heavy type)	15-60 m³/h	10-60 m³/h
100	30-100 m³/h	15-100 m³/h
150	45-190 m³/h	34-190 m³/h
200	68-340 m³/h	56-340 m³/h

Oval gear flowmeter of high viscosity type

Model	LC—NA	LC—NE	LC-NB High-viscosity
	High-viscosity iron casting type	High-viscosity cast steel type	stainless steel type
Nominalpressure MPa	1.6	1.6、2.5、4.0、6.3	1.6、2.5、4.0、6.3
Medium temperature	Conventional pointer type: -20~+80℃；
	High-temperature pointer type: -20~+200℃；
	Conventional LCD type: -20~+60℃；
	High-temperature LCD type: -20~+150℃；
Accuracy	0.50%
Nominal diameter	Viscosity: 200—1000mPa.s	Viscosity: 1000-2000mPa.s
10	0.04—0.3m3h	0.03-0.2 m³/h
15	0.2-1.0 m³/h	0.1-0.7 m³/h
20	0.4-2.1 m³/h	0.25-1.5 m³/h
25	0.6-4.2 m³/h	0.6-3m3h
40	2.1-10.5m3h	1.0-7.5 m³/h
50	2.4-16.8m3h	2-12 m³/h
65	6-28 m³/h	4-20 m³/h
80(light type)	6-28 m³/h	4-20 m³/h
80(heavy type)	8-42 m³/h	6-30 m³/h
100	10-70 m³/h	10-50 m³/h
150	27-133 m³/h	19-95 m³/h
200	48-238 m³/h	34-170 m³/h

High-Accuracy oval gear flowmeter (0.2%)

Model	LC—A Iron casting type	LC—B Stainless steel type	LC—E Cast steel type
Nominalpressure MPa	1.6	1.6、2.5、4.0、6.3	1.6、2.5、4.0、6.3
Medium temperature	Conventional pointer type: -20~+80℃；
	High-temperature pointer type: -20~+200℃；
	Conventional LCD type: -20~+60℃；
	High-temperature LCD type: -20~+150℃；
Accuracy	0.20%
Nominal diameter	Viscosity: 0.6—2 mPa.s	Viscosity: 2—200 mPa.s
10	–	0.2-0.4 m³/h
15	–	0.5-1.5 m³/h
20	1.5-3 m³/h	1-3 m³/h
25	3-6 m³/h	1.26 m³/h
40	8-15m3h	5-15 m³/h
50	12-24m3h	8-24 m³/h
65	20-40m3h	10-40 m³/h
80(light type)	20-40m3h	10-40 m³/h
80(heavy type)	30—60m3h	15—60 m³/h
100	40-100m3h	20-100 m³/h
150	90-190m3h	56-190 m³/h
200	170-340m3h	68-340 m³/h

High-Accuracy and high-viscosity oval gear flowmeter (0.2%)

Model	LC—NA	LC—NE	LC-NB High-viscosity
	High-viscosity iron casting type	High-viscosity cast steel type	stainless steel type
Nominal pressure MPa	1.6	1.6、2.5、4.0、6.3	1.6、2.5、4.0、6.3
Medium temperature	Conventional pointer type: -20~+80℃；
	High-temperature pointer type: -20~+200℃；
	Conventional LCD type: -20~+60℃；
	High-temperature LCD type: -20~+150℃；
Accuracy	0.20%
Nominal diameter	Viscosity: 200—1000mPa.s	Viscosity: 1000-2000mPa.s
10	0.08-0.3 m³/h	0.06-0.2 m³/h
15	0.3-1.0 m³/h	0.2-0.7 m³/h
20	0.6-2.1 m³/h	0.5-1.5 m³/h
25	1-4.2 m³/h	0.8-3 m³/h
40	3-10.5 m³/h	2-7.5 m³/h
50	4-16.8 m³/h	3-12 m³/h
65	8-28 m³/h	6-20 m³/h
80(light type)	8-28 m³/h	6-20 m³/h
80(heavy type)	10-42 m³/h	8-30 m³/h
100	15-70 m³/h	12-50 m³/h
150	34-133 m³/h	30-95 m³/h
200	56-238 m³/h	50-170 m³/h

Get Quick Quote of Stainless Steel Flow Meter

Sino-Inst is your best choice for instrument measurement. Our stainless steel flow meter can measure a variety of corrosive, high temperature and high pressure media. It is also a food grade measuring instrument. It can be used to measure clean liquids. Please contact us. We will provide you with the best solution.

Products Categories

Coriolis Mass Flow Meter

Thermal Gas Mass Flow Meter

Differential Pressure Flow Meter

Electromagnetic Flowmeter

Ultrasonic Flow Meter

Vortex Flowmeter

Turbine Flowmeter

Positive Displacement Flow Meters

Compact Pressure Sensor/Transmitter

High Temperature Pressure Transmitter

Cryogenic Pressure Transducer

High Temperature Melt Pressure Transmitter

Explosion-Proof Pressure Transmitter

Differential Pressure Transmitter

Hydrostatic Level Transmitter

Ultrasonic Level Transmitter

Radar Level Meter

Paperless Recorder

Solid Powder Flowmeter

Float Level Sensors / Switches

Capacitive level sensor

Level Switches/Controllers

Get A Free Quote

Applications of Stainless Steel Flow Meter

Stainless steel flow meter is a high-precision, corrosion-resistant flow measurement instrument. The following are its main applications:

Chemical industry: Stainless steel flow meter is used to measure the flow of corrosive liquids such as acids, alkalis, and solvents.

Petroleum industry: Stainless steel flow meter can measure the flow of crude oil, diesel, gasoline and other oil products.

Food liquid metering: Stainless steel flow meter is used to measure water, juice, beverage bases, etc.

Medical liquid flow measurement: In the pharmaceutical process, Stainless steel flow meter can measure the flow of liquid and solvents with high precision.

Medical equipment flow monitoring: Stainless steel flow meters used for medical equipment such as hemodialysis machines and ventilators to monitor liquid and gas flow.

Sewage treatment monitoring: Stainless steel flow meter is used to monitor liquid flow in sewage treatment and wastewater treatment.

Metallurgical industry: Stainless steel flow meter is used for liquid flow measurement in steel rolling, steel making and other links.

Energy industry: Stainless steel flow meter measures the flow of energy such as natural gas.

More Detail

Customized Cases of Stainless Steel Flow Meter

Sino-Inst’s products can be customized according to your parameters. We can provide you with the most satisfactory products. You can refer to our customized cases:

Case 1:

Material: 316 stainless steel
Signal output: 4-20mA
Media: 12 API crude oil, corrosive
Pressure/Temperature: 175 PSI / 150˚ C
Design viscosity: – 42 CP to 100 CP
Flange size:DN50, 2 inch 300# RF, DN80, 3 inch 300# RF

Case 2:

Material: 304 stainless steel
Flange size: DN100 PN 10/16
Media – MDO grade MGA
Viscosity: 6.000 mm²/s, average – 4.5 mm²/s.
Average flow: 120 m³/h
Temperature: -40℃
Pressure: – 3 Bar
Battery-powered digital counter.
Application: Marine, suitable for open deck applications (subject to harsh marine environment), and comes with a calibration certificate.

Case 3:
