BTU meters are used in the heating and cooling industries to measure fluid flow and thermal energy consumption. The primary categories of BTU meters include electromagnetic heat meters, ultrasonic heat meters, and vortex heat meters.
This article introduces basic knowledge related to BTU meters.
What is BTU?
The full name of BTU is British Thermal Unit. It is a standard unit for measuring heat. One BTU represents the amount of heat required to raise the temperature of one pound of liquid water by one degree Fahrenheit at its highest density point (approximately 39°F).
Fuel can be measured by energy or heat rather than physical units like weight or volume. The U.S. Energy Information Administration (EIA) uses BTU as a unit for measuring energy content.
What is a BTU Meter?
A BTU meter, also known as an energy meter. A calorimeter is an instrument used to measure changes in thermal energy within heating and cooling systems. It counts relevant data by measuring the flow rate and temperature of fluids passing through heat exchangers. Accurate data measurement ensures the system operates smoothly.

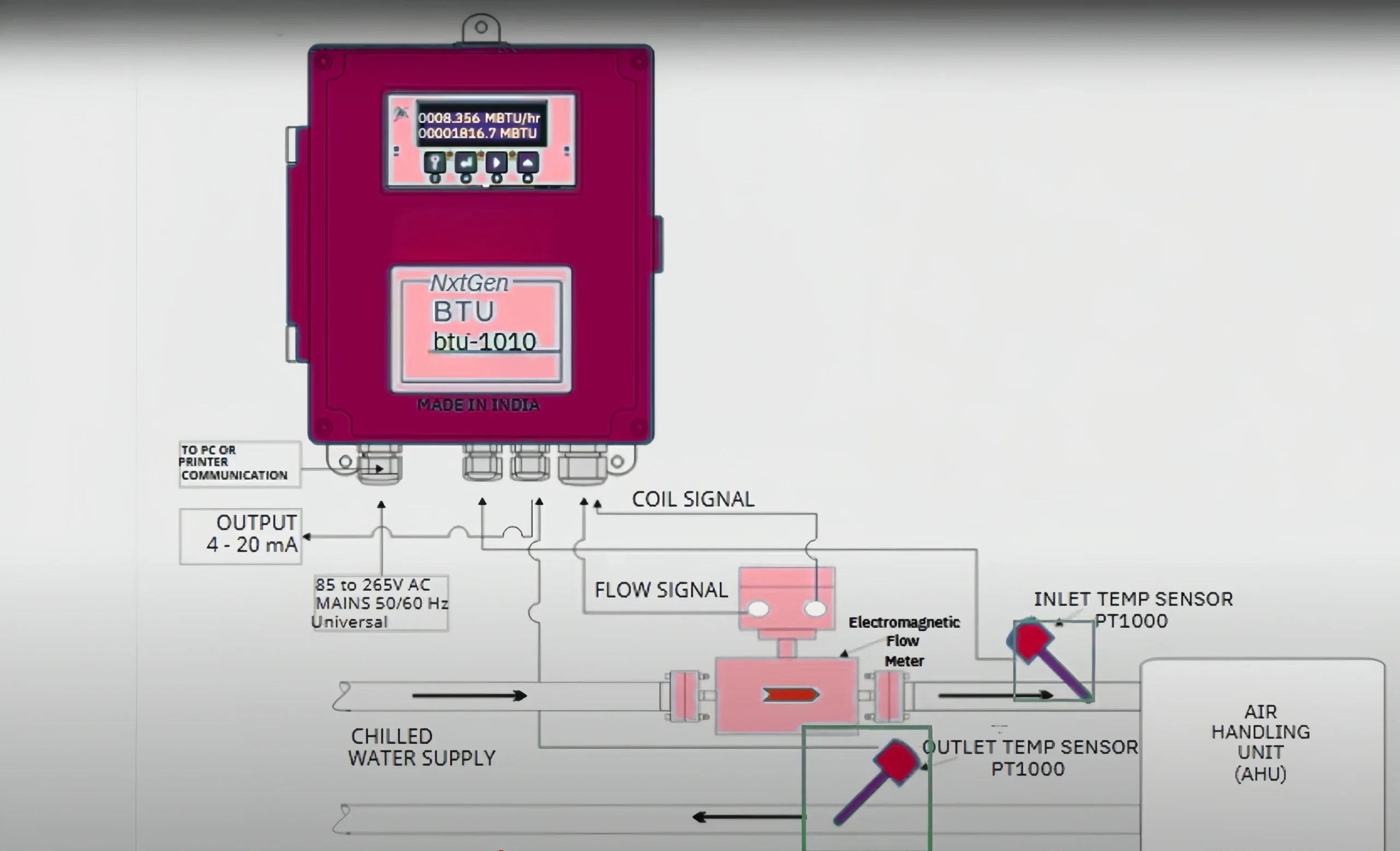

A BTU meter consists of two temperature sensors, a flow meter, and an accumulator. One temperature sensor is located at the heat exchanger inlet. The other is positioned at the outlet. The flow sensor tracks the movement of liquid through the heat exchanger.
BTU Meter Working Principle
A pair of temperature sensors is installed on the supply and return pipes of the heat-transfer fluid, respectively. The flow meter is installed at the fluid inlet or return pipe. Different installation locations will yield varying measurement results.
The flow meter outputs a pulse signal proportional to the flow rate. Temperature sensors provide analog signals reflecting temperature levels. After measuring these electronic signals, the accumulator counts the heat exchanged within the systems.
BTU Meter Applications
Accurate Measurement and Fair Billing
Installed on heating pipelines, the BTU meter accurately measures heat transferred from the heat source to each user. Heating companies use this data to bill users based on actual heat consumption. It replaces the previous old area-based billing model.
Smart Buildings
BTU meters play an essential role in building energy management. In building automation systems, they have real-time analysis of heat usage across different area within a structure.
Property managers can use this data to optimize the operation schedules and power settings of heating equipment. For newly green buildings, BTU meter makes energy meets energy regulation standards.
Industrial Production Processes
Many industrial processes involve heat transfer and utilization. BTU meters monitor heat output and recovery in equipment like industrial boilers and heat exchangers. In chemical plants, by installing electromagnetic BUT heat meters on heating and cooling pipes of reactors, companies can track real-time thermal changes during reactions. Furthermore, for waste heat recovery systems, the BTU meter provides data to evaluate the effectiveness of heat utilization.
HAVC
The heat is transferred between the heating and cooling branches of an HVAC process. Generally, the temperature difference between the two flow branches is minimal. And precise measurements yield significant variations. The BTU flow meter calculates the system’s thermal energy value based on this data.
Chilled Water
Heat transfer is calculated using the flow rate measured by the flow meter and the temperature difference between the supply and return water. The specific calculation method is as follows. First, determine the enthalpy difference between the supply and return water (enthalpy is a thermodynamic parameter representing the energy contained in a substance).
Then, multiply this enthalpy difference by the flow rate to obtain the transferred cooling or heating capacity. For example, assuming a high supply water temperature, a low return water temperature, and a constant flow rate. A larger temperature difference indicates more heat transferred by the system. A higher flow rate also results in greater transferred heating or cooling capacity.
BTU Meter Types
Based on operating principles, BTU meters can be categorized into mechanical BTU meters, vortex BTU meters, electromagnetic BTU meters, ultrasonic BTU meters, etc.
Mechanical heat meters are divided into single-jet and multi-jet types. Single-jet meters operate when water flows in a single direction within the meter, driving the impeller rotation. The disadvantage of single-jet meters is high wear and a short service life. Multi-jet meters operate by water flowing through the meter from multiple directions to drive the impeller. The advantage of multi-jet meters is relatively low wear and a longer service life.
Electromagnetic heat meters measure flow based on Faraday’s law of electromagnetic induction. Two electromagnetic coils at the upper and lower ends generate a constant or alternating magnetic field. When a conductive medium flows through the electromagnetic heat meter, an induced electromotive force can be detected between the left and right electrodes on the flow meter tube wall.
The magnitude of this induced electromotive force is proportional to the flow velocity of the conductive medium, the magnetic flux density of the magnetic field, and the conductor width (the inner diameter of the flow meter measuring tube). Through calculation, the medium flow rate can then be obtained.

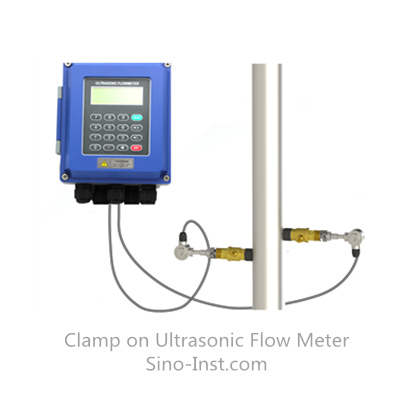

Ultrasonic BTU Meter is the collective term for heat meters utilizing ultrasonic flow meter technology. It is based on the principle of the Ultrasonic Time-of-Flight Method. The ultrasonic technique measures fluid flow by detecting the time difference in ultrasonic signal propagation through the fluid.
When ultrasonic waves propagate through a fluid, the fluid flow causes a time difference in signal transmission. The magnitude of this time difference is directly proportional to the fluid flow velocity. This different time enables the measurement of fluid flow rate.
The key technology of vortex BTU meters originates from the Karman vortex street phenomenon. When a fluid flows at a specific velocity around a non-streamlined obstacle (such as a triangular or trapezoidal prism), alternating rows of vortices form downstream. The vortex shedding frequency exhibits a linear relationship with flow velocity. Below is the formula display.
f = dSt · u
where: d is the characteristic dimension of the obstruction. f is the vortex frequency. St is the Strouhal number (related to the shape of the obstruction and the Reynolds number). u is the fluid velocity.
BTU Meter Calculation
The basic calculation formula for a BTU meter is Calorie Calculation Formula.
Q = m c ΔT
Where: ΔT is the temperature change. Q is the change in heat. m is the mass of the object. c is the specific heat capacity of the substance.
In a heat system, changes in heat may be influenced by various factors. So, we must comprehensively consider various factors to count the change in heat. Energy balance equations for the system can be established using the principles of energy conservation and thermodynamics. It enables the calculation of heat change.
In practical calculation progress, ensure consistent units for all physical quantities used. In addition, consider the system’s specific characteristics and conditions to select appropriate calculating methods.
BTU Energy Measurement Systems
A BTU measurement system quantifies the thermal energy generated or consumed within heating or cooling systems. This system is based on the British Thermal Unit. BTU is defined as the amount of heat required to raise the temperature of one pound of water by one degree Fahrenheit. Its operating principle has been detailed in the preceding content.
BTU meter measurement systems play a vital role in precision metering. With the continuous development of energy demand, ensuring the accuracy of heat meters has become particularly important. The BTU measurement system can effectively verify the performance of heat meters.
First, the heat meter measurement system can accurately test all parameters of heat meters. It safeguards users’ metering rights and prevents metering disputes. For example, in heating systems, the measurement accuracy of heat meters directly impacts residents’ heating expenses.
Employing advanced automated control technology, the BTU meter measurement system not only enhances calibration efficiency but also completes multiple tests within a short timeframe.
The BTU meter measurement system automatically adjusts variables. such as temperature, pressure, and flow rate to simulate usage scenarios under different environmental conditions.
The BTU measurement system can also be configured with an intelligent data management system. This system records and stores all test data, significantly enhancing data traceability and accuracy. It facilitates subsequent quality control and management tasks. Through data measurement, factories can promptly identify potential malfunctions in the BTU meter and implement preventive maintenance measures.
The Featured Relative Flow Meters
BTU Meter Installation Notes
Steps for Installing a BUT Meter:
Select an Appropriate Installation Location
When installing a heat meter, first choose a suitable location. The meter should be mounted on the supply or return pipe of the heating system, preferably on a straight pipe section in the direction of water flow. Avoid installation at elbows, valves, or valve seats, as these areas have uneven water flow that can influence measurement accuracy.
Before installation, confirm that the pipe interior is clean and free of debris. Contaminants or deposits may damage the meter’s sensors and compromise measurement accuracy. Thoroughly flush the pipe to eliminate impurities.
Confirm Pipe Diameter and Meter Compatibility
BTU meters come in various models and specifications. Prior to installation, confirm the selected meter matches the pipe diameter. Flow measurement accuracy is closely related to pipe dimensions. Selecting the wrong model will cause measurement errors.
Check System Pressure Before Installation
Before installation, confirm that the heating system’s pressure meets the heat meter’s operational requirements. Both excessively high and low pressure can affect the meter’s accuracy. Making confirmation of normal system pressure a necessary pre-installation step.
Installing a BTU Meter Steps
We advise you to install the BTU meter according to the supplier’s provided installation instructions. The BTU meter is usually installed horizontally and aligned with the direction of pipeline flow. During installation, ensure the inlet and outlet connections are correctly connected.
Connect the Power Supply and Sensor
For electronic heat meters, connect the power supply during installation and verify secure circuit connections. Ensure the sensor is properly linked to the meter’s main unit to enable proper differential temperature measurement.
Testing and Inspection
After installation, test the heat meter to verify proper functionality. Simulate system water flow and temperature differentials. To confirm the BTU meter’s readings match actual conditions. If anomalies are detected, re-adjust or inspect the installation method.
What is the difference between a flow meter and a BTU meter?
A flow meter measures the flow rate of liquids or gases within a pipe, capturing velocity values (e.g., 1 m/s). While it can display cumulative volume flow, instantaneous flow, or peak flow based on requirements, it fundamentally functions as a velocity/flow measurement instrument.
A heat meter, also known as a thermal energy meter, is specialized for heating systems. While it measures flow, its primary purpose extends beyond flow measurement. The fluid in the pipe serves merely as a heat carrier; the meter's target data is the total thermal energy transferred through the pipe per unit time.
What are the advantage and disadvantages of using a BTU meter?
Mechanical BTU Meter Advantages：
- Simple structure and manufacturing process.
- Low cost.
- Relatively low power consumption.
- It can be powered by an internal lithium battery.
Mechanical BTU Meter Disadvantages：
- Numerous wear-prone components are prone to scaling and clogging.
- Low reliability and stability.
- The impeller shaft core is susceptible to wear, particularly in corrosive water conditions, resulting in low operational endurance.
- Short service life.
- Significant pressure loss reduces heating network delivery capacity, complicating retrofitting of existing pipelines.
- Limited flow measurement accuracy.
- Ineffective metering at low fluid velocities.
Ultrasonic BTU Meter Advantages：
- No moving parts within the measuring tube.
- Blockage issues are not significant.
- Installation requires no special considerations and can be mounted either horizontally or vertically.
- It can meet the measurement requirements for corrosive heat transfer fluids.
Ultrasonic BTU Meter Disadvantages：
- Point-speed sampling offers limited detection accuracy.
- The market struggles to absorb the high cost of multi-channel ultrasonic detection.
- Heat transfer fluids require descaling treatment.
- Water quality significantly impacts meter measurement performance.
- Fluid temperature fluctuations markedly affect measurement accuracy.
- Significant pressure loss occurs.
- Vibration compromises measurement accuracy and reliability.
Electromagnetic BTU Meter Advantages：
- No clogging, minimal pressure loss.
- High reliability and stability.
- Exceptional durability and extended service life.
- High measurement accuracy with full-speed average sampling.
- Measured fluid does not affect flow detection results.
- Simplified calibration equipment facilitates widespread adoption.
- For heating systems with low temperature differentials and high flow rates.
- Its superior performance characteristics are further enhanced.
- Strong adaptability to pipeline and environmental vibrations.
- Meets measurement requirements for corrosive heat transfer fluids.
- No special installation requirements; can be mounted horizontally or vertically.
Electromagnetic BTU Meter Disadvantages：
- Traditional electromagnetic flow sensors feature complex structures.
- Their manufacturing processes are intricate, resulting in extremely high production costs.
- Consequently, the product price is relatively high.
- They can only measure the heat (flow rate) of conductive liquids used as heat transfer fluids.
- Power consumption is relatively high, so they currently require a 220V mains power supply.
In short, the heat meters in the heat metering market are predominantly mechanical heat meters and ultrasonic heat meters. Electromagnetic heat meters are installed only in limited quantities at heat stations, heating stations, heating districts, and main building pipelines.
How accurate are BTU meters?
The accuracy of a BTU meter depends on the flow meter's accuracy. The accuracy of the flow meter determines the accuracy of the BTU meter.
BTU meters are classified into three accuracy classes. Even within the same accuracy class, the permissible error varies depending on the operation conditions.
In short, BTU meters play a esstential role in heat measurement and calculation. For heat measurement needs, you can choose electromagnetic heat meters, ultrasonic heat meters, or vortex heat meters according to your specific operation.
