The Ultra High Pressure Transducer is made of rare metal alloy material, processed by special process, and integrated design. There is no burst phenomenon during the ultra-high pressure measurement and control process.

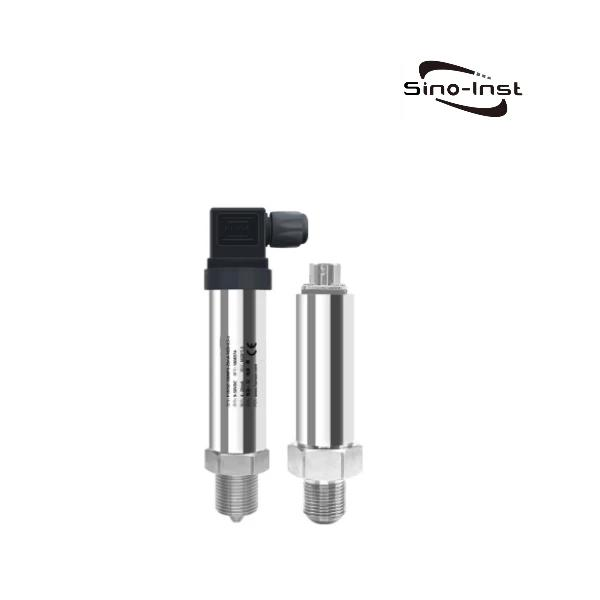

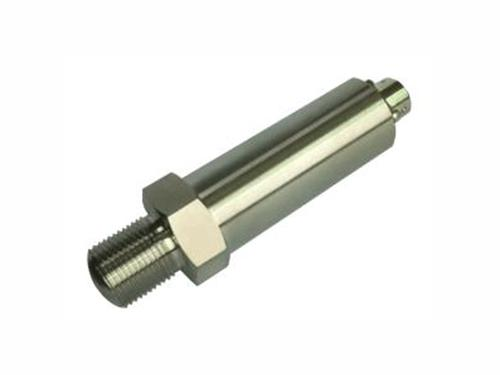

SI-702 Ultra High-Pressure Transducer is also commonly known as: a high-pressure pressure sensor, or high-pressure pressure transmitter. It adopts spherical or conical sealing to ensure the tightness of the high-pressure system. It is suitable for pressure measurement and controlling large hydraulic equipment, etc.
It has a variety of standard signal output options. User debugging is convenient. It is an anti-lightning strike, anti-electromagnetic/radio frequency interference. Its filling liquid is minimally affected by temperature.

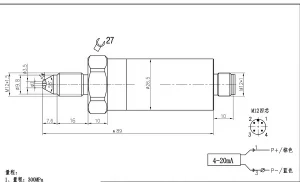

| Range: | 0-100,150,200,250,300,500,700-1000MPa |
| Comprehensive accuracy: | 0.2%FS、0.5%FS |
| Output signal: | 4-20mA (two-wire system), 0-5/1-5/0-10VDC (three-wires system) |
| Supply voltage: | 24VDC (10-30VDC) |
| Medium temperature | -20～75℃ |
| Ambient temperature: | -20～75℃ |
| Load resistance: | Current output type: maximum 800Ω; voltage output type: greater than 50KΩ |
| Insulation resistance: | Greater than 2000MΩ (100VDC) |
| Sealing level: | IP65 |
| Long-term stable performance: | 0.1%FS/year |
| Vibration effects: | Within the mechanical vibration frequency of 20Hz~1000Hz, The output change is less than 0.1% FS. |
| Electrical Interface: | Four-core aviation connectors and Hessmann connectors are optional |
| Threaded interface: | Cone head M20×1.5, ball head M20×1.5, M22×1.5, etc. Other threads can be designed according to customer requirements. |
We, Sino-Inst, are a professional manufacturer of high-pressure pressure transmitters. We support the customization of various high-pressure ranges!
Ultra high pressure transmitters have higher material strength, sealing performance, and impact resistance to meet the measurement needs under extreme pressure conditions. This product has excellent performance, safety, and stability. This ultra-high pressure pressure transmitter is better than domestic and foreign brands in structural design and long-term stability. Come to me to buy it!
Ultra-high pressure transmitters are precision instruments used to measure extremely high pressures and are often used in oil drilling, aerospace, deep-sea exploration, and other fields. The Ultra High-Pressure Transducer can usually accurately measure pressure under extreme conditions, so its reliability and durability are very high. In addition, it can also be used in variable-frequency water supply systems, mechanical equipment, tap water networks, and automated production lines.

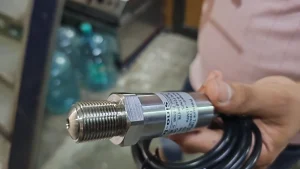

Customized parameter example:
1. High-pressure sensor
Range: 0-1000MPa,
Accuracy: 0.5% FS,
Out Singal：0-10V,
M20x1.5M ball head,
With Hirschmann connector;
2. High-pressure sensor
Pressure: 300MPa (gauge pressure)
Temperature: 80℃
Signal: 0-10V
Accuracy: 0.5%
Mounting thread: M12*1.0
| SI-702 | Ultra High-Pressure Transducer |
| Code | Range |
| (0~X)MPa | 0~150,250,300,350,400,450,500~1000MPa |
| Code | Output Signal |
| B1 | 4-20mA |
| B4 | 0-5v |
| B5 | 1-5v |
| Code | Process Connection |
| Q | Ball head M20×1.5 |
| Z | Conehead M20×1.5, |
| P3 | M22×1.5 |
| P4 | custom thread |
| Code | Electrical connections |
| C1 | Hirschman joint |
| C2 | cable output |
| C3 | Aviation Connector |
| SI-702 (0-700)MPa B1 Q C1 |
