Mechanical Flow Switch with Pointer/ up to 300℃

Mechanical flow switches are mainly installed in water, oil and other online or plug-in media pipelines. Sino-Inst’s mechanical flow switch can be customized to 300 degrees Celsius. Sino-Inst’s mechanical flow switch has a pointer display. The data is clearly visible. It allows users to understand the flow more intuitively.

Streamlined structure design
Durable
Magnetic coupling measurement system
Any installation direction
Various materials to choose from: stainless steel, brass, aluminum, plastic
Wide measurement range
High accuracy
Clear flow display scale
Easy to read
Rotating pointer
Division scale

Get A Free Quote

Mechanical Flow Switch Introduction

The mechanical flow switch is used to monitor the water flow in the water supply system. When the water flow is higher or lower than a certain set time point. The device will send an output alarm signal to the device. The system will make corresponding indication actions after receiving the signal. Therefore, it avoids or reduces the host’s “dry burning”.

FS series flow switch measurement principle: The mechanical flow switch uses a conical measuring tube and a measuring target. When the fluid passes along the conical tube, the measuring target is displaced according to the size of the flow. The displacement of the measuring target is balanced by the action of the elastic balancing force. It is transmitted to the indication system through the magnetic coupling system to achieve flow monitoring and control.

Mechanical Flow Switch Parameters

Diameter	DN15~DN250
Accuracy	12%
Repeatability	±2.5%
Pressure level	0.6~4.0MPa (high pressure optional)
Temperature	Standard type 85℃, high temperature type 300℃
Signal output	Alarm point output can be used with a transistor relay (intrinsically safe type)

Point Type:

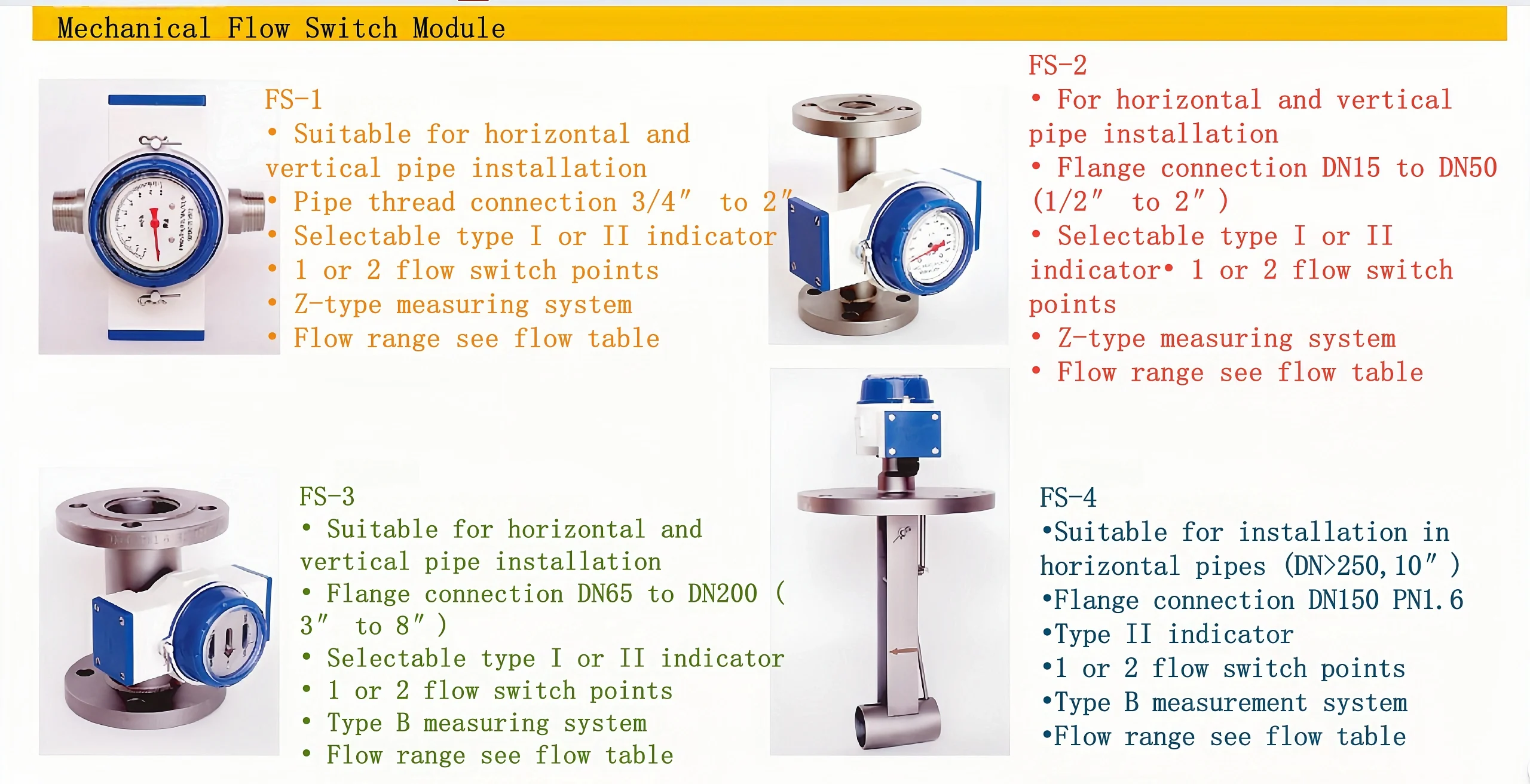

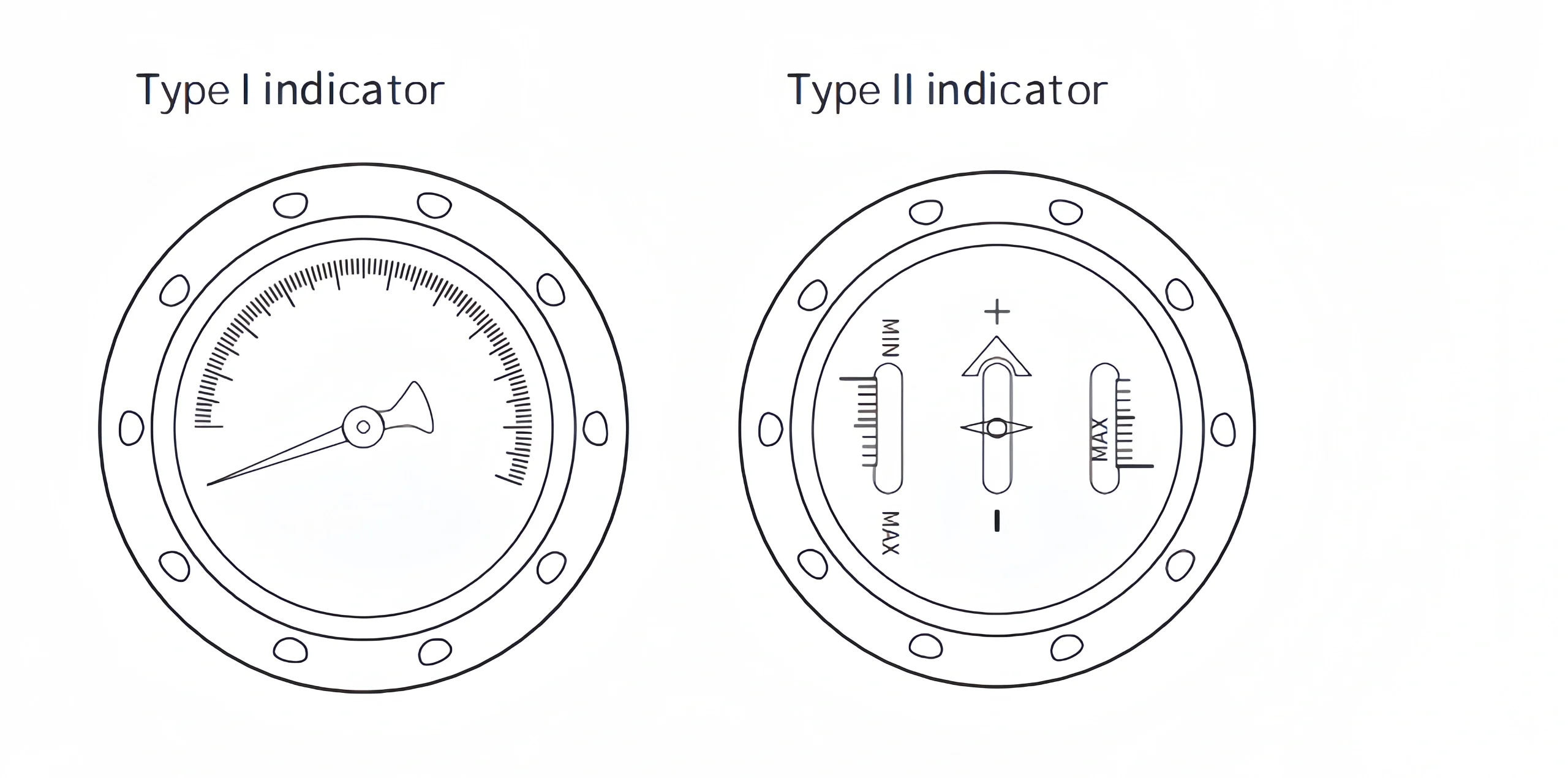

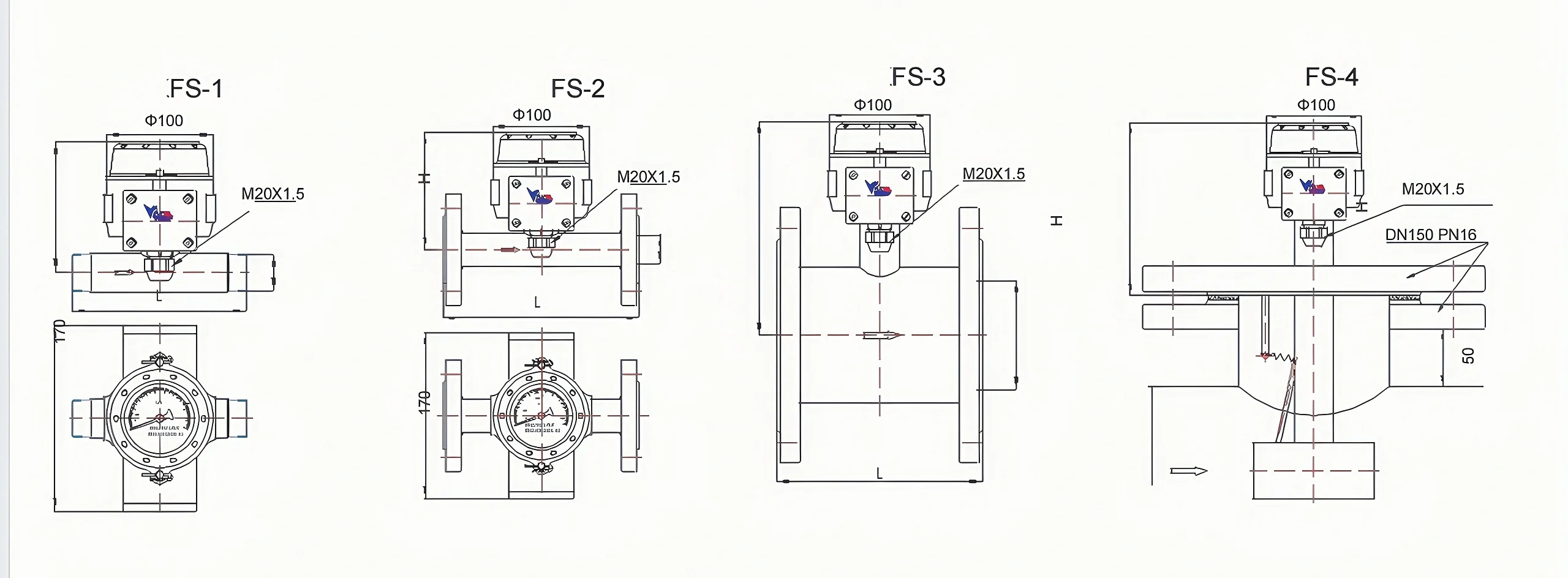

FS-1~3 flow switches can be composed of type I or type II indicators. The circular dial and pointer corresponding to the measuring range, which are divided into l/h, l/min, m3/h, etc., can easily observe the flow rate; at the same time, this type of flow switch can also easily adjust the switch alarm point without interrupting the flow in the pipeline.

The basic type of FS-4 flow switch consists of type II indicators; the dial corresponding to the measuring range 1/10 division can be simply observed to determine the flow rate; at the same time, this type of flow switch can easily adjust the switch alarm point without interrupting the flow in the pipeline.

Get a Quick Quote of Mechanical Flow Switch

Sino-Inst’s mechanical flow switches support customization and OEM. Our mechanical flow switches can measure media above 300 degrees Celsius.
Sino-Inst has fast logistics. We have world-class service. If you have measurement-related questions. Please get in touch with us. We will answer them for you.

Products Categories

Coriolis Mass Flow Meter

Thermal Gas Mass Flow Meter

Differential Pressure Flow Meter

Electromagnetic Flowmeter

Ultrasonic Flow Meter

Vortex Flowmeter

Turbine Flowmeter

Positive Displacement Flow Meters

Compact Pressure Sensor/Transmitter

High Temperature Pressure Transmitter

Cryogenic Pressure Transducer

High Temperature Melt Pressure Transmitter

Explosion-Proof Pressure Transmitter

Differential Pressure Transmitter

Hydrostatic Level Transmitter

Ultrasonic Level Transmitter

Radar Level Meter

Industrial Recorder/Paperless Recorder

Solid Powder Flowmeter

Float Level Sensors / Switches

Capacitive level sensor

Level Switches/Controllers

Flow Switch/Flow Controller

Torque Sensor

Get A Free Quote

Mechanical Flow Switch Applications

Unique streamlined structure design of the mechanical flow switch. Accurate and stable performance. The FS series flow switch is mainly used for liquid flow monitoring and switch output in pipelines. Its solid structure and stable performance can be widely used in cooling and lubrication systems of rolling mills, conveyors and other machines.

It is widely used in monitoring flow in pipelines and cooling and lubrication systems of large, medium and small equipment. For example: generator sets, motors, rolling mills, compressors, transmission systems, etc.

It can also be used for monitoring industrial forces such as oil fields, petroleum refining, chemicals, ethanol, pharmaceuticals, alchemy, power plants, papermaking, food, textiles, light industry, water treatment, industrial welding, etc.

More Detail

What is a Flow Switch in Fire Fighting?

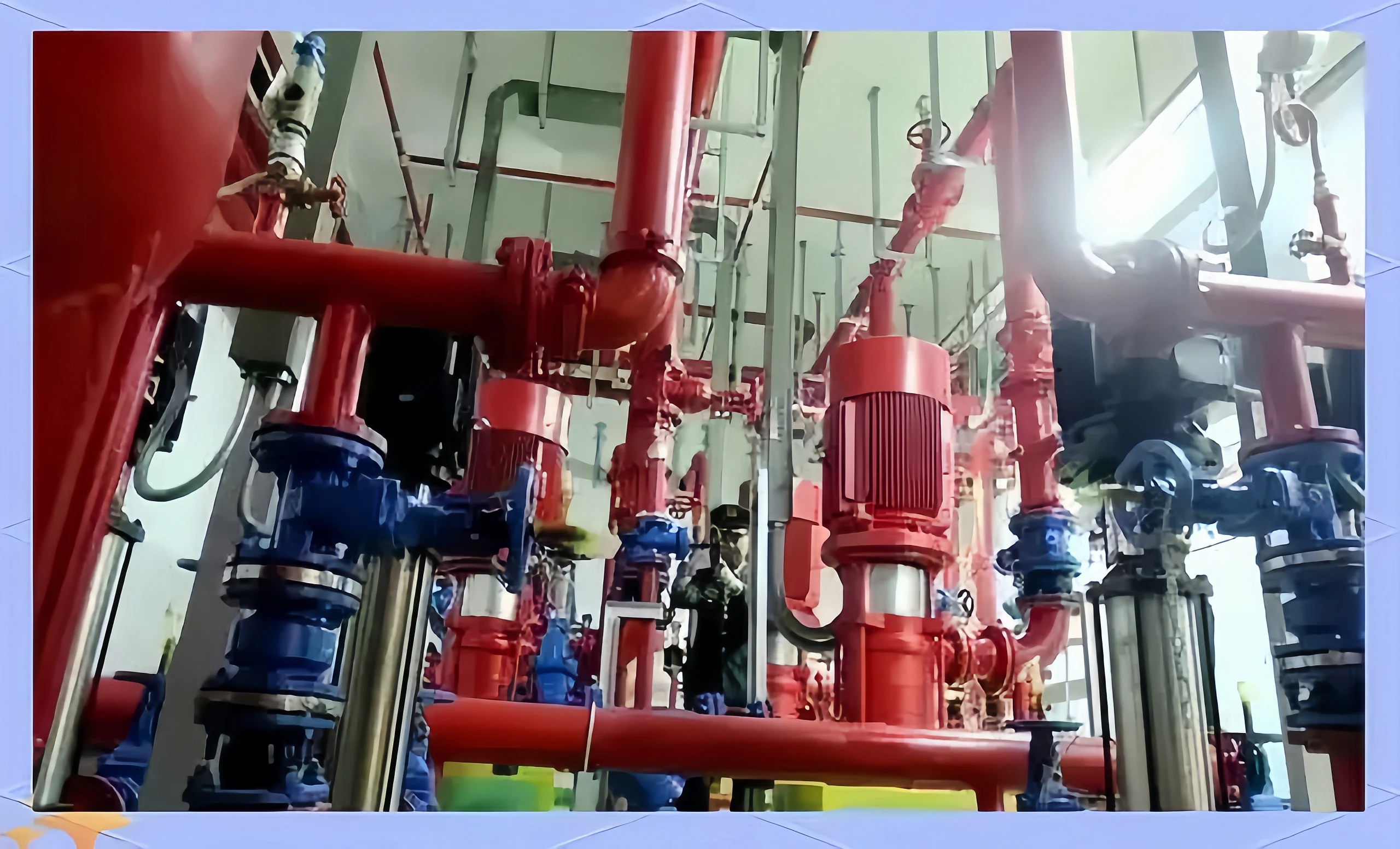

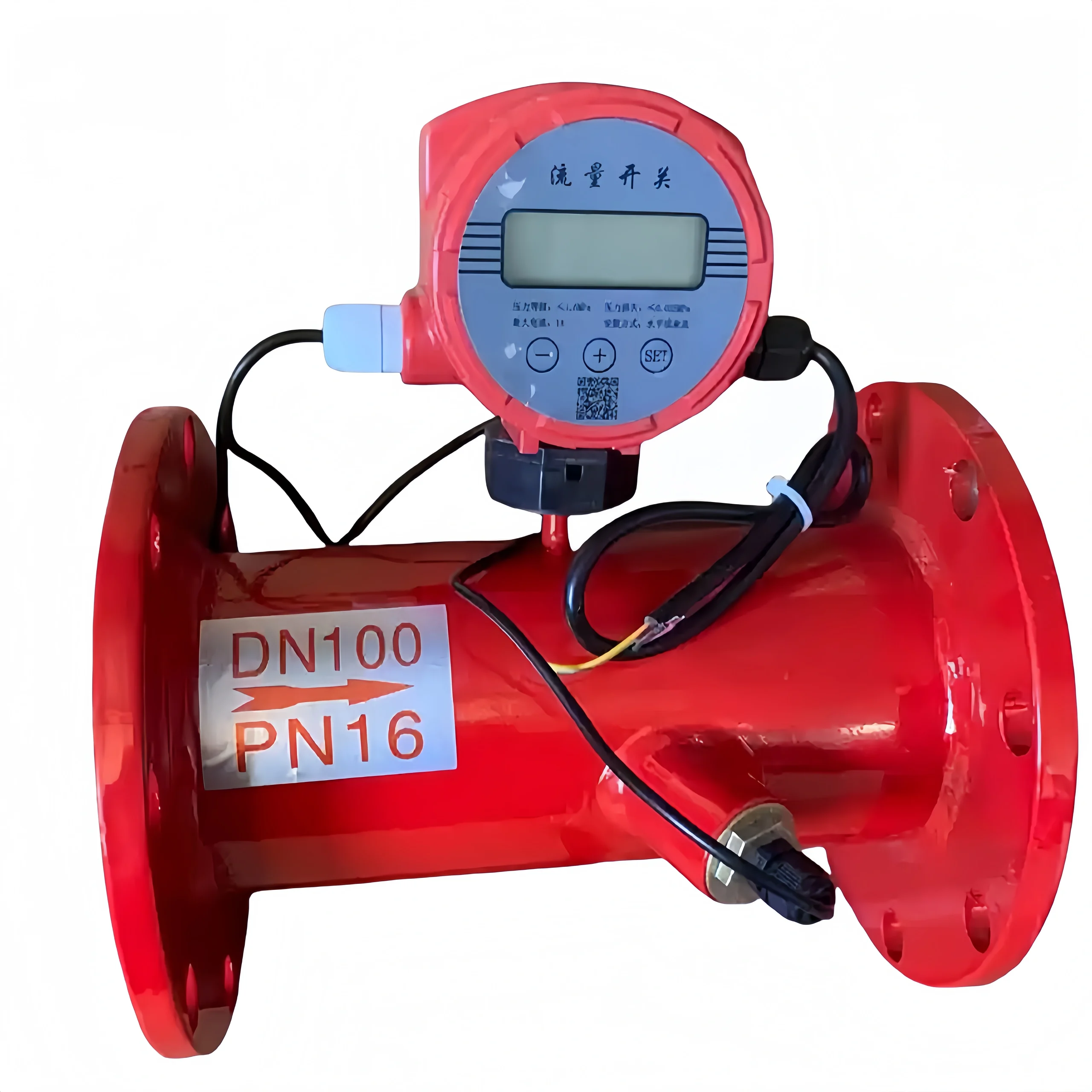

A flow switch in a firefighting system is a device used to monitor water flow. It is an integral part of a firefighting system. It connects the fire extinguishing or sprinkler system of a building to the fire alarm system.
