What is an "Inline Air Flow Meter"?
An inline air flow meter is a device that is installed directly in a pipe or duct. It is used to measure the rate at which air flows through it. It is designed to be part of a process piping system that has an inlet and an outlet through which the air flows.
In-line flow meters can be used in a variety of industrial settings to monitor air flow in pipes and ducts. They can measure compressed air consumption, track leaks, and optimize system efficiency. They are also used to measure other types of gas flow, not just air.
Advantages of inline flow meters:
- Direct measurement: Inline flow meters read the flow rate directly.
- Easy installation: They can be easily installed into existing piping systems.
- Accurate measurement: Many inline flow meters have high accuracy.
- Versatile: They can be used in a variety of applications and flow ranges.

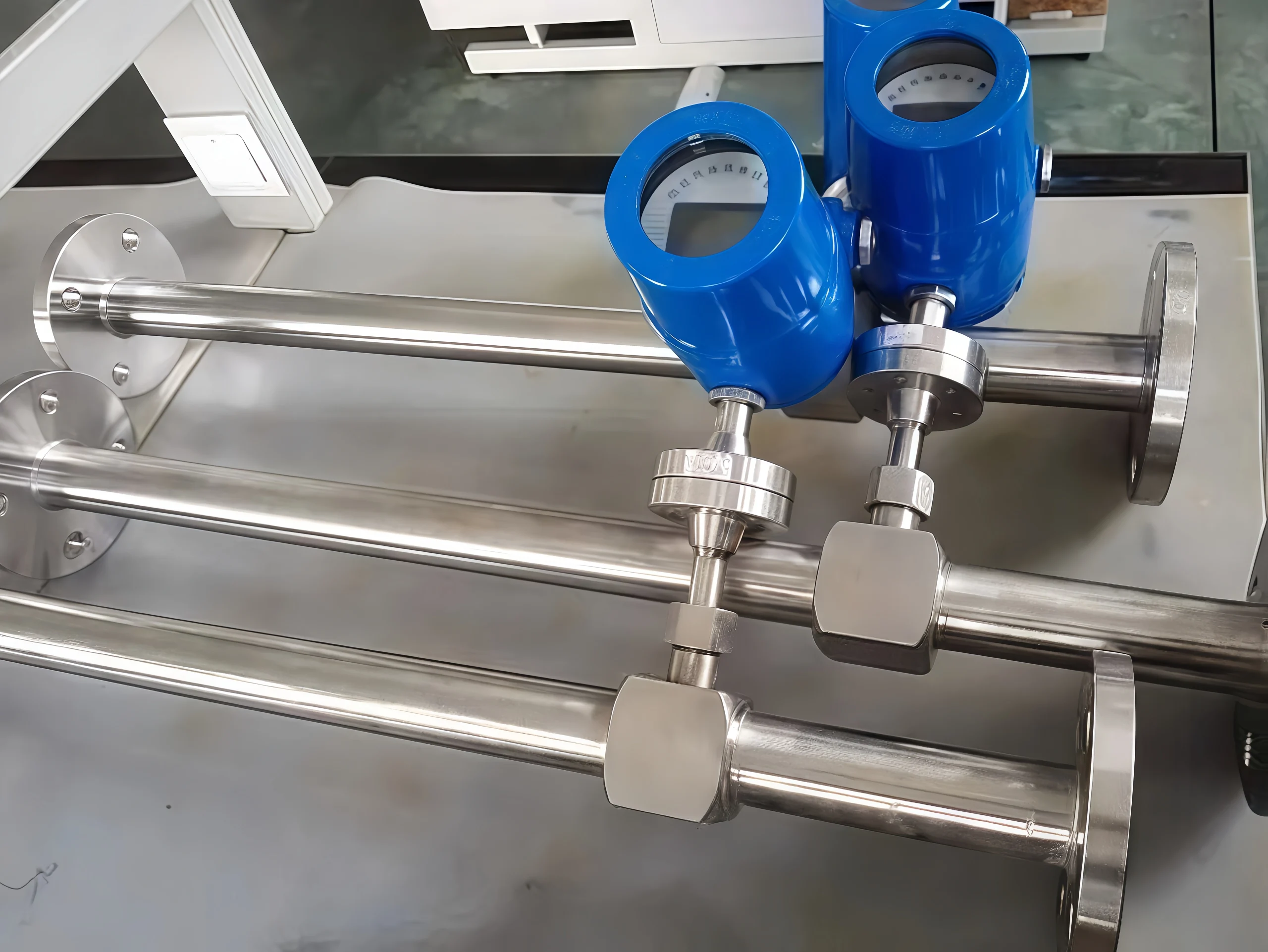

Inline Compressed Air Flow Meters
A compressed air flow meter is a device used to measure the flow rate of compressed air. Thermal gas mass flow meter and vortex flow meter are the most commonly used online compressed air flow meters. If it is a special working condition. For example, ultra-high temperature, ultra-high pressure, and large pipe diameter. You can consider the insertion type Annubar flow meter.
Compressed air flow meters are commonly used in industrial environments. It helps determine and manage compressed air usage. And whether there are leaks or inefficient use. And It can improve efficiency by knowing where and when the air is consumed.
Sino-Inst provides compressed air flow meters with and without local display. Optional 4- 20mA, pulse, RS-485, HART and other signal outputs. It is suitable for hazardous area applications.
Benefits of using a compressed air flow meter:
- Leak detection
- Tracking usage
- Optimizing compressor operation
- Energy management
- Monitoring system efficiency
How does an Air Flow Meter Work?
A thermal gas mass flow meter is more widely used due to its simpler structure and larger measurement range. It is the preferred type of air flow meter.
A thermal gas flow meter is a flow meter designed based on the principle of heat diffusion or heat conduction. It is mainly used to measure the mass flow of air and compressed air.
Its working principle is realized by two thermal resistors (RTD) sensors. One is used to measure the gas flow rate and the other is used to sense the change in gas temperature.
The mass flow rate of gas flowing through the velocity sensor is calculated by the amount of heat transferred by the sensing element.
The heated wire or element cools down as air flows through it. The amount of cooling is related to the mass flow of air. The air flow is then converted into a digital signal.
The air flow meter measures the temperature difference between the heated wire and the element or the change in resistance of the heated wire. The difference is proportional to the mass flow of air.
The change in temperature or resistance is converted into an electrical signal and sent to the Engine Control Unit (ECU).
- ECU Interpretation:
The ECU interprets the signal as the mass of air flowing into the engine, ensuring the correct air-fuel ratio and engine performance.
Flow Meters that can be used to Measure Air
There are several types of air flow meters, each using a different principle to measure flow rate.
Differential Pressure Air Flow Meters
Differential pressure air flow meters typically use an orifice or other shape-changing element in the airflow. This measures the air flow by measuring the pressure drop across the constriction in the airflow path. This pressure difference is then processed into flow.
Differential pressure flow meters are extremely accurate. They have no moving parts, which minimizes maintenance. And they can operate under a wide range of conditions. They can be used in a wide range of applications. Including oil and gas, water treatment, and chemical processing.
Thermal Mass Flow Meter
A thermal mass flow meter is a device that measures the mass flow of a gas using the principles of heat transfer. Thermal mass flow meters offer several advantages. They have no moving parts and can directly measure mass flow. They provide accurate measurements over a wide range of flow rates.
A thermal mass flow meter works by introducing a known amount of heat into a flowing fluid stream. This measures the change in temperature or the energy required to maintain a constant temperature difference. Thermal mass flow meters are used in a variety of applications. For example, manufacturing, semiconductor manufacturing, and wastewater treatment.
Vortex flow meters
Vortex flow meters use the Karman vortex phenomenon to measure the flow of liquids, gases and steam using shedding rods. They create vortices in the gas flow, and the frequency of vortex shedding is proportional to the velocity of the fluid. A sensor detects the frequency of vortex shedding and converts it into a measurable electrical signal. This allows the flow meter to accurately measure flow.
Vortex flow meters offer a variety of advantages. These include high accuracy, wide range ratio, and low pressure drop. They have no moving parts and are widely used in a variety of industries. For example, steam systems, chemical processes, and power generation.
Rotameter
Rotameter, also known as a variable area flow meter. It measures the volumetric flow of a fluid by observing the position of a float inside a tapered tube. When air flows, the float moves upward inside the tube. The position of the float indicates the flow rate.
Rotameters are relatively simple devices that can be made from inexpensive materials. They do not require any external power source to operate. They are used in a variety of applications to measure the flow of liquids and gases.
Features and Advantages of Air Flow Meters
- High accuracy. Accuracy is typically within ±1-2% of reading.
- Air flow meters can also measure temperature, absolute pressure, and total air volume.
- Wide dynamic range.
- Bidirectional flow response.
- Reduced environmental impact.
- Optimized combustion.
- Leak detection.
- High turndown ratio.
- Minimum pressure drop.
Purpose of Air Flow Meters
The main use of an air flow meter is to measure the amount of air entering the engine intake. Air flow meters monitor air in many manufacturing processes. This can include compressed air, forced air, or ambient air. They can measure air velocity, volume flow, temperature, humidity, and even wind direction.
In industrial settings, they can help optimize energy use. Identify leaks in compressed air systems and ensure efficient combustion. In vehicles, they help manage engine performance by measuring the amount of air entering the engine.
- Measuring air flow
- Fuel control
- Maintaining engine efficiency
- Industrial applications
- Building and HVAC applications.
- Wind speed monitoring
How to Choose an Air Flow Meter?
1. Measurement requirements
Flow range:
Determine the gas flow range to be measured. Understand the maximum flow, minimum flow and common flow values of the gas in order to select a flow meter that can cover this flow range.
Consider possible flow changes in the future and reserve a certain margin. Avoid exceeding the measurement range of the flow meter, resulting in inaccurate measurement or damage to the flow meter.
Measurement accuracy:
Select a flow meter based on the requirements of the actual application for measurement accuracy. Different types of gas flow meters have different accuracies. High-precision flow meters are also relatively expensive.
Consider the impact of measurement errors on the production process or cost accounting. If the measurement error is large, it may lead to production decision errors or inaccurate cost calculations.
Response time:
Some application scenarios require a fast response in process control. A short response time should be selected. A flow meter with a short response time can promptly reflect changes in gas flow so that the control system can make adjustments quickly.
2. Gas characteristics
Gas type:
Different gases have different physical and chemical properties. It will affect the selection of flow meters.
Some gases may have special physical properties, such as the low density and low viscosity of hydrogen. It needs to be considered when selecting a flowmeter.
Gas temperature and pressure:
The temperature and pressure of the gas have an important impact on the selection of the flowmeter. Different types of flowmeters are suitable for different temperature and pressure ranges.
High temperature and high-pressure gas may damage the material and structure of the flowmeter. It is necessary to select a flowmeter with corresponding temperature and pressure resistance. Sino-Inst’s products can be customized.
Gas humidity and cleanliness:
If the gas contains moisture or impurities, that is, wet gas or dirty gas, it will affect the measurement accuracy of the flowmeter. When selecting a flowmeter, consider the adaptability of the flowmeter to wet gas and dirty gas.
For gases containing more impurities, a flowmeter with anti-pollution ability should be selected. A pre-treatment device such as a filter, should be installed in front of the flowmeter to protect the flowmeter from impurities.
3. Installation environment
Space limitation:
If the installation space is limited, a flowmeter with a small size and compact structure needs to be selected. Consider the installation method of the flowmeter. Such as flange connection, threaded connection, etc., to ensure that it can adapt to the requirements of the installation space.
For some special installation environments. such as narrow pipe wells, under low ceilings, etc., It may be necessary to select a flow meter with a special shape or customizable installation method.
Vibration and shock:
If there is a large vibration and shock at the installation location, a flow meter with vibration resistance should be selected. When selecting a flow meter, it is necessary to understand its vibration resistance performance index and evaluate it in combination with the actual installation environment.
Consider the impact of vibration and shock on the long-term reliability of the flow meter. Frequent vibration and shock may cause the components of the flow meter to loosen, damage or reduce the measurement accuracy. Therefore, it is necessary to select a flow meter with good vibration resistance and long-term stability.
Ambient temperature and humidity:
The temperature and humidity of the installation environment will also affect the performance and life of the flow meter. If the ambient temperature is too high or too low, it may affect the working performance of the electronic components and sensors of the flow meter.
A high humidity environment may cause condensation inside the flow meter. It affects the measurement accuracy and reliability.
4. Cost and Maintenance
Initial cost:
The prices of different types of gas flow meters vary greatly, and it is necessary to choose the right flow meter according to the budget. When choosing, it is necessary to comprehensively consider the measurement needs and cost factors.
Consider the installation cost of the flow meter. It includes the costs of pipeline modification, mounting brackets, cable laying, etc. Some flow meters may require special installation conditions and equipment. It will increase the installation cost.
Operation cost:
Consider the operating cost of the flow meter, such as energy consumption, maintenance costs, etc.
For long-term gas systems, operating costs may become one of the important factors in selecting a flow meter. When selecting a flow meter, it is necessary to comprehensively consider the initial cost and operating cost and select a flow meter with a lower overall cost.
Maintenance requirements:
Different types of flow meters have different maintenance requirements, and it is necessary to select a flow meter. That is easy to maintain according to the actual situation. We should choose a flow meter that is simple to maintain and easy to operate to reduce the difficulty and cost of maintenance.
Many common industrial applications require accurate measurement of air or other gases. For example, ventilation equipment monitoring, process inspection, industrial applications, etc.
There are many air flow meters available on the market. We at Sino-Inst provide flow measurement technologies that are compatible with air applications. Including rotor flow meters, vortex flow meters, thermal mass flow meters, differential pressure flow meters, etc. At Sino-Inst, you can find the right air flow meter for your application. If you have any questions, please feel free to contact our engineers.
