High Temperature Flow Meter with Oval Gear

Sino-Inst’s high temperature flow meter is economical and affordable. Our high temperature flow meter for different liquids (acids, bases, salts, organic solutions, etc.) can be made of different materials. High temperature flowmeter can measure high viscosity and high temperature liquids. High temperature flowmeter can measure up to 300℃.

Customizable
OEM
High accuracy, ±0.2%,
Temperature adaptability range up to -40~+300℃,
Repeatability <0.07%;
Simple structure, easy maintenance
Viscosity adaptability is stronger, higher temperature resistance
Easy to install,
flange connection (other connection methods can be customized)
Large range, maximum range ratio can reach 1:10
Starting flow is small, and normal measurement can be performed below the lower limit of flow
The flow meter viscosity range can reach 0.3~2000mPa.s

Get A Free Quote

Introduction of High Temperature Flow Meter with Oval Gear

The oval gear flow meter has a pointer and a wheel accumulation device. The addition of a signaling device in the counting mechanism and the matching of the electric display instrument can realize the centralized control of the accumulated, quantitative and instantaneous flow remote transmission. The addition of a liquid crystal digital counter can display the instantaneous/accumulated flow on site. Multiple signals can be transmitted remotely (pulse/current/communication) at the same time.

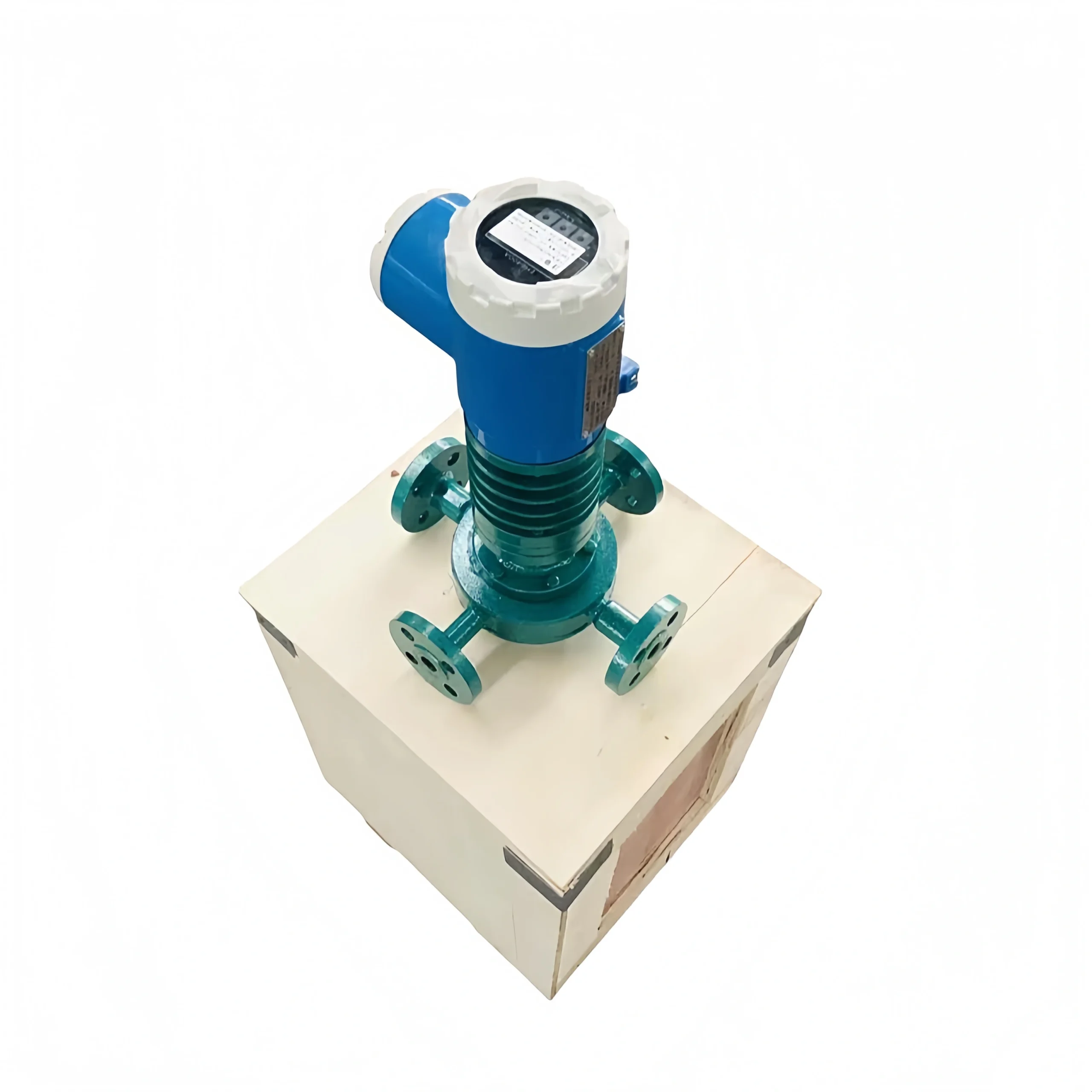

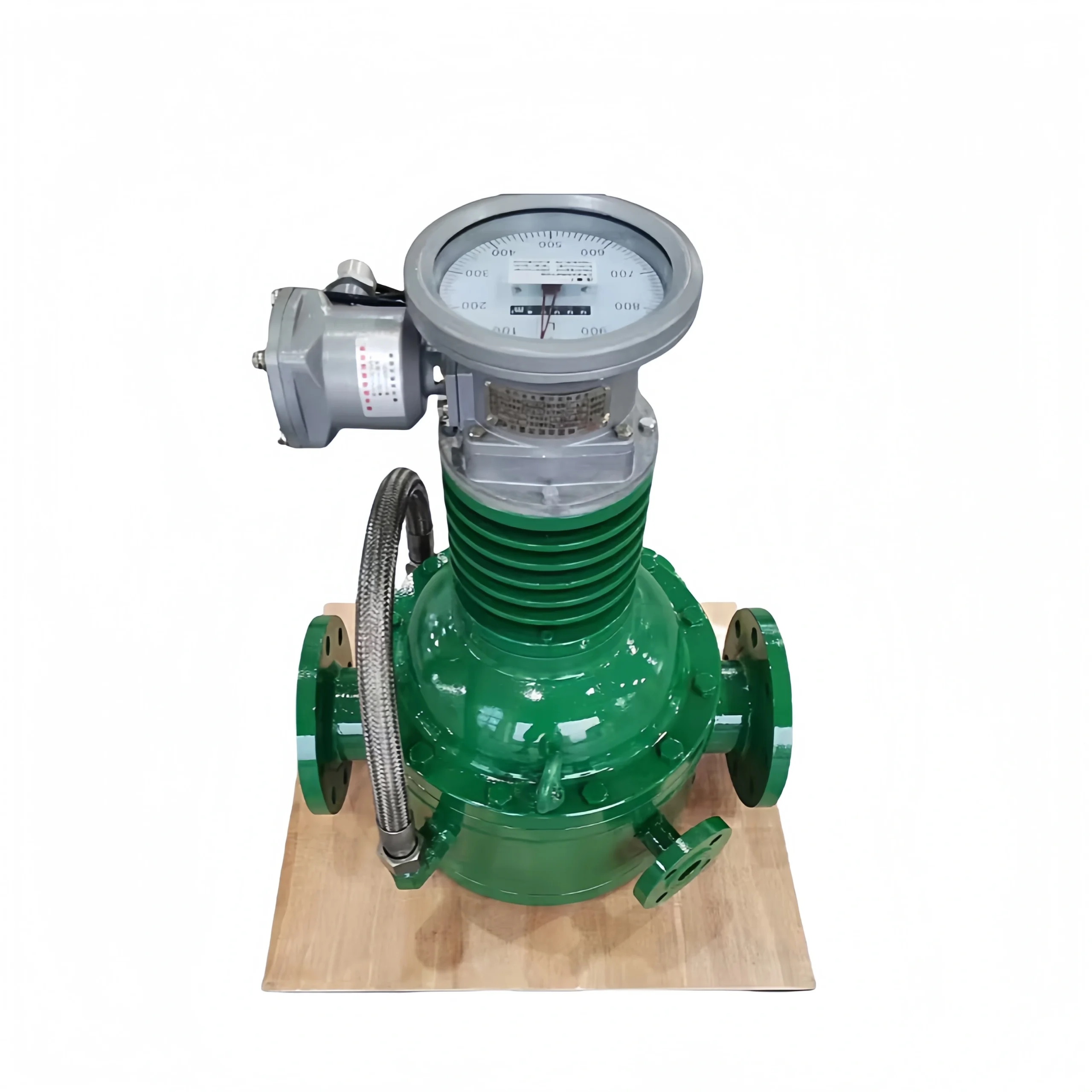

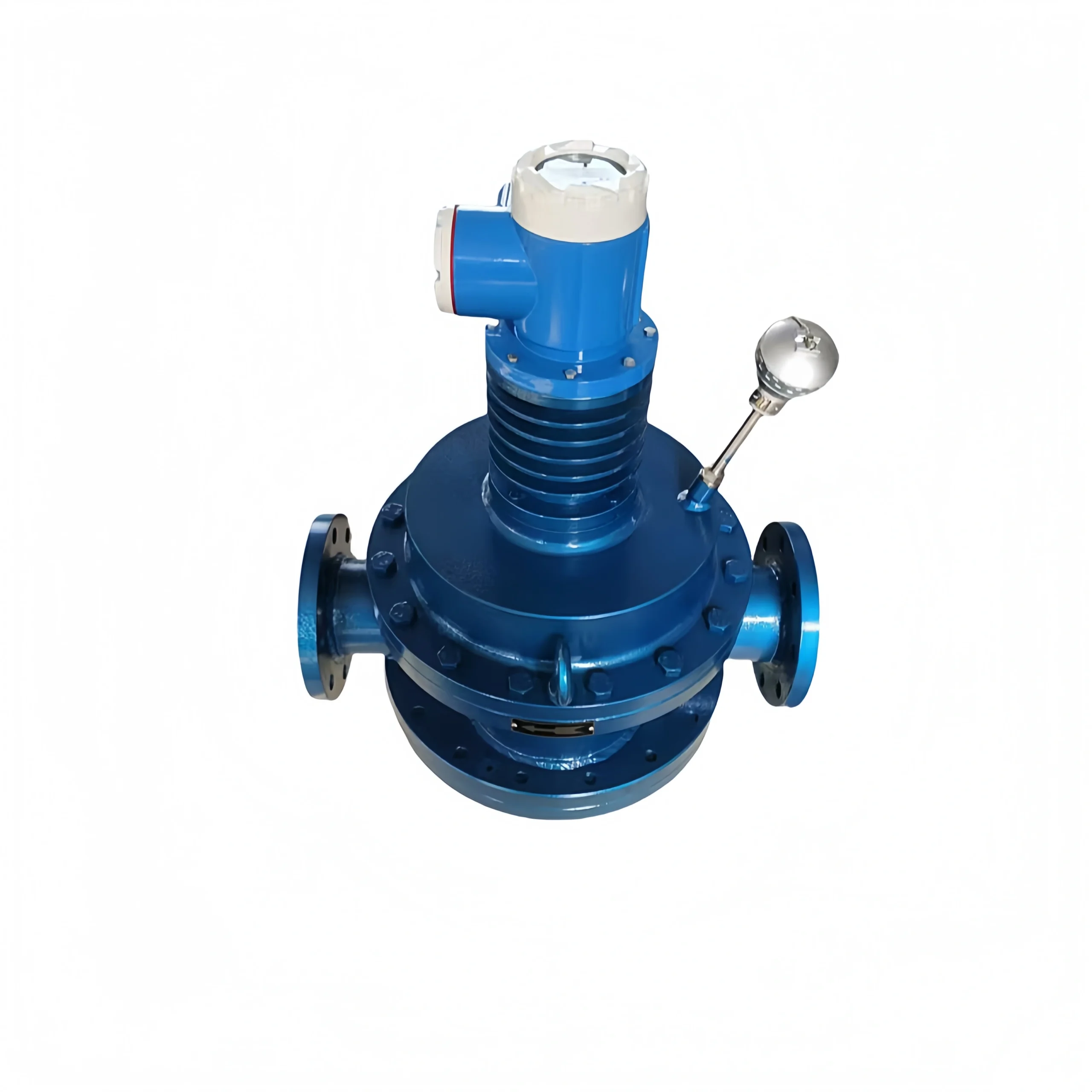

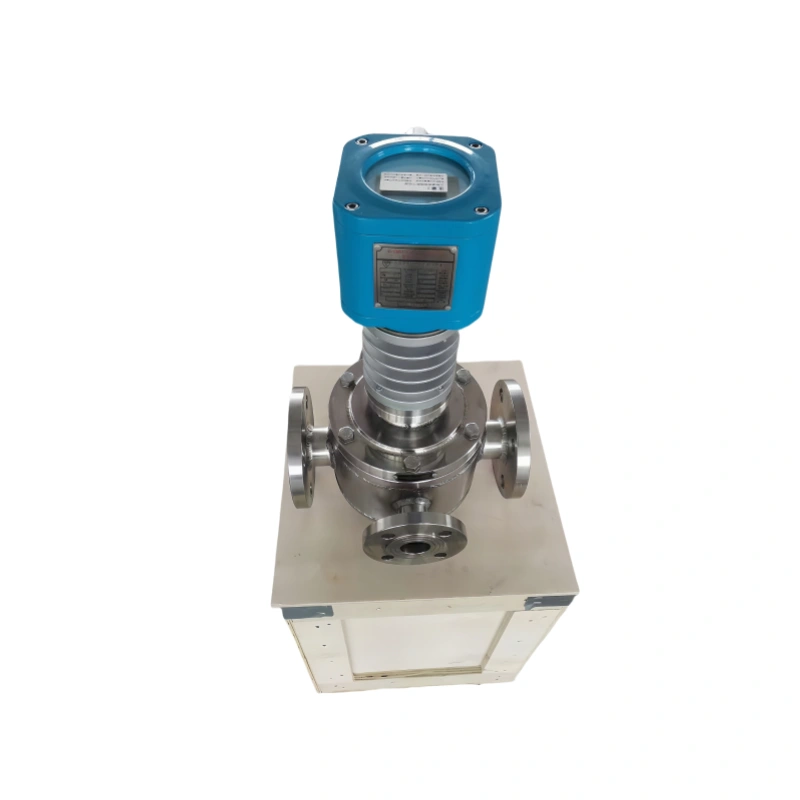

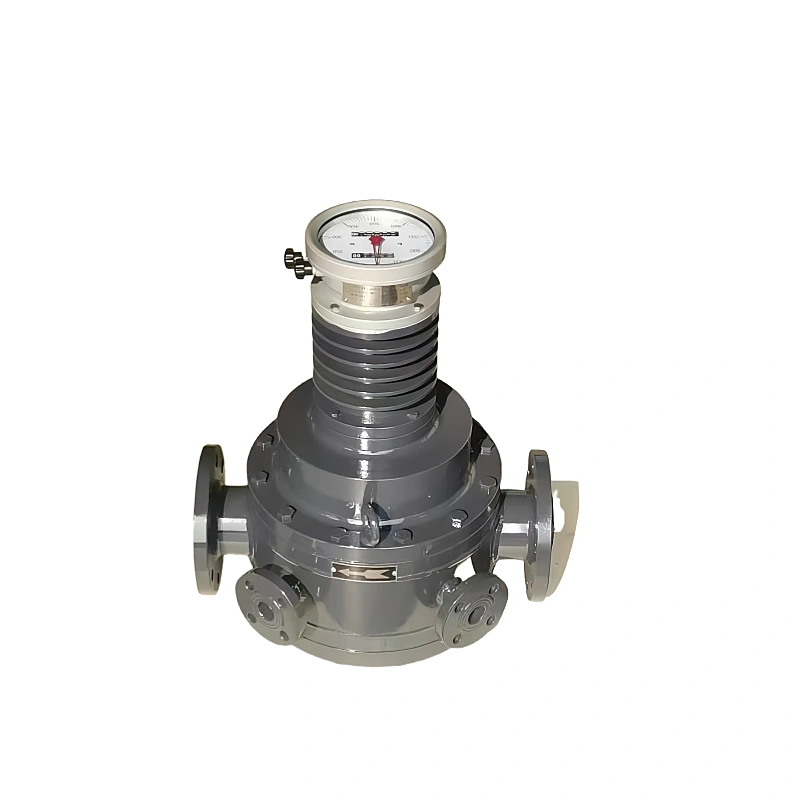

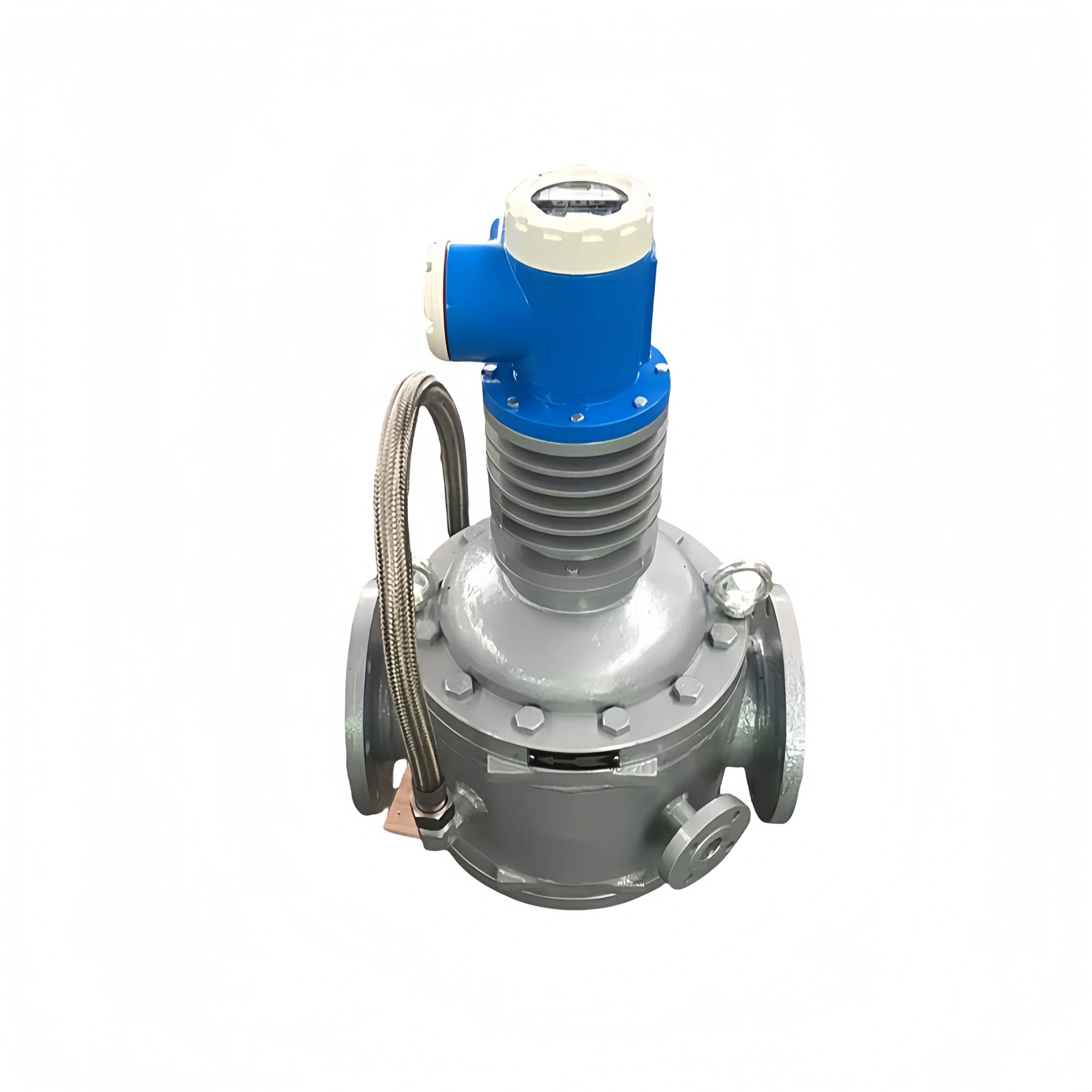

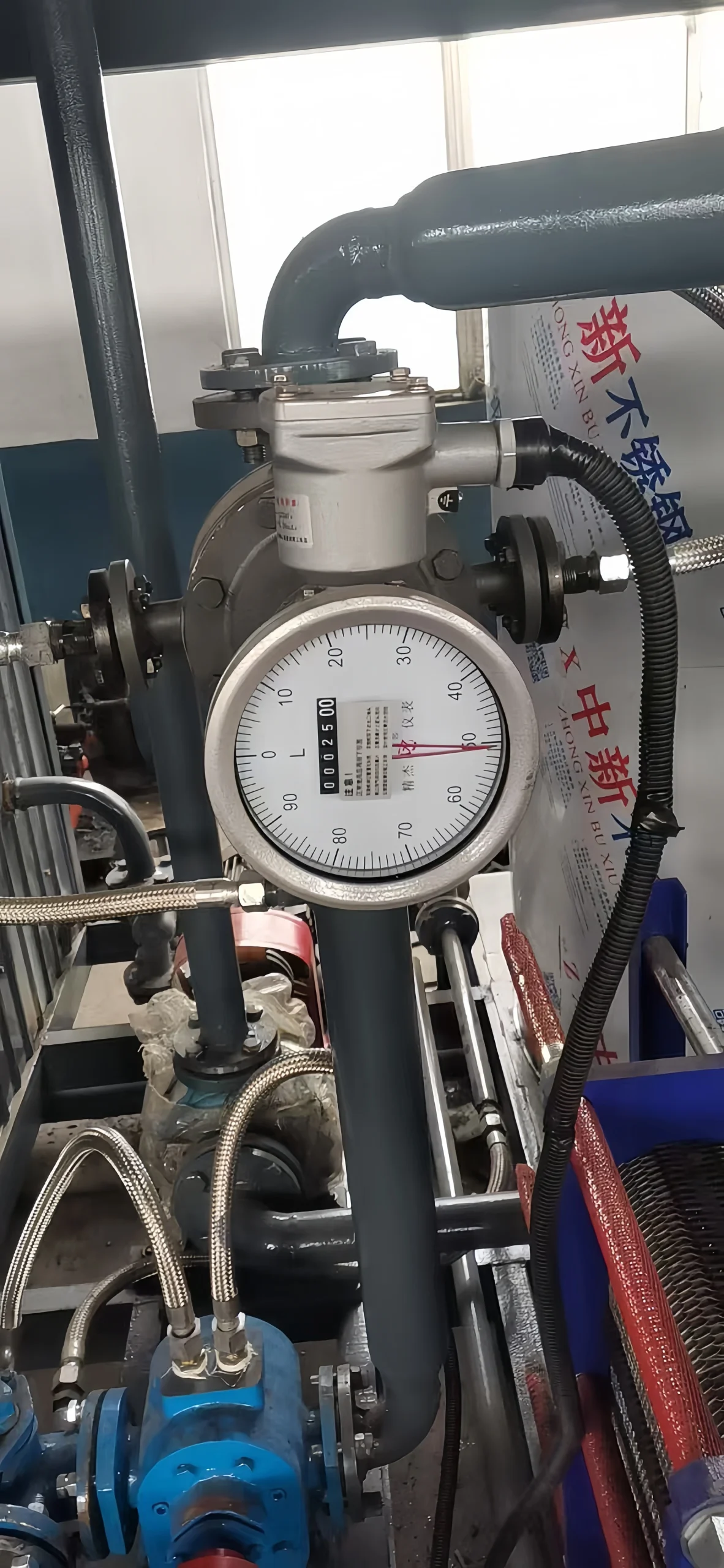

The oval gear flow meter consists of a flow transmitter and a counting mechanism. A radiator is installed between the transmitter and the counting mechanism to form a high temperature flowmeter. The transmitter consists of a metering chamber equipped with a pair of oval gear rotors and a sealed coupling. The counting mechanism includes a speed reduction mechanism, an adjustment mechanism, a counter, and a signaling device. It can be equipped with an explosion-proof liquid crystal digital display counter to display the instantaneous and accumulated flow on site and output multiple signals at the same time.

We can also measure small flow and corrosive liquids, you can choose: positive displacement flow meters

Technical parameters of High Temperature Flow Meter with Oval Gear

Oval gear flowmeter of iron casting type, cast steel type and stainless steel type

model	LC—A Iron casting type	LC—B Stainless steel type	LC—E Cast steel type
Nominal pressure MPa	1.0 1.6	2.5 4.0 6.4	1.0 1.6
Medium temp.	Conventional pointer type: -20~+80℃；
	High-temperature pointer type: -20~+200℃；
	Conventional LCD type: -20~+60℃；
	High-temperature LCD type: -20~+150℃；
Accuracy	0.50%
Nominal diameter	Viscosity: 0.6—2mPa.s	Viscosity: 2—200mPa.s
10	0.2-0.4 m³/h	0.08-0.4 m³/h
15	0.6-1.5 m³/h	0.3-1.5 m³/h
20	0.8-3 m³/h	0.6—3 m³/h
25	1.2-6 m³/h	0.8-6 m³/h
40	5-15 m³/h	3-15 m³/h
50	6-24 m³/h	4-24 m³/h
65	10-40 m³/h	8-40 m³/h
80(light type)	10-40 m³/h	8-40 m³/h
80(heavy type)	15-60 m³/h	10-60 m³/h
100	30-100 m³/h	15-100 m³/h
150	45-190 m³/h	34-190 m³/h
200	68-340 m³/h	56-340 m³/h

Oval gear flowmeter of high viscosity type

Model	LC—NA	LC—NE	LC-NB High-viscosity
	High-viscosity iron casting type	High-viscosity cast steel type	stainless steel type
Nominalpressure MPa	1.6	1.6、2.5、4.0、6.3	1.6、2.5、4.0、6.3
Medium temperature	Conventional pointer type: -20~+80℃；
	High-temperature pointer type: -20~+200℃；
	Conventional LCD type: -20~+60℃；
	High-temperature LCD type: -20~+150℃；
Accuracy	0.50%
Nominal diameter	Viscosity: 200—1000mPa.s	Viscosity: 1000-2000mPa.s
10	0.04—0.3m3h	0.03-0.2 m³/h
15	0.2-1.0 m³/h	0.1-0.7 m³/h
20	0.4-2.1 m³/h	0.25-1.5 m³/h
25	0.6-4.2 m³/h	0.6-3m3h
40	2.1-10.5m3h	1.0-7.5 m³/h
50	2.4-16.8m3h	2-12 m³/h
65	6-28 m³/h	4-20 m³/h
80(light type)	6-28 m³/h	4-20 m³/h
80(heavy type)	8-42 m³/h	6-30 m³/h
100	10-70 m³/h	10-50 m³/h
150	27-133 m³/h	19-95 m³/h
200	48-238 m³/h	34-170 m³/h

High-Accuracy oval gear flowmeter (0.2%)

Model	LC—A Iron casting type	LC—B Stainless steel type	LC—E Cast steel type
Nominal pressure MPa	1.6	1.6、2.5、4.0、6.3	1.6、2.5、4.0、6.3
Medium temperature	Conventional pointer type: -20~+80℃；
	High-temperature pointer type: -20~+200℃；
	Conventional LCD type: -20~+60℃；
	High-temperature LCD type: -20~+150℃；
Accuracy	0.20%
Nominal diameter	Viscosity: 0.6—2 mPa.s	Viscosity: 2—200 mPa.s
10	–	0.2-0.4 m³/h
15	–	0.5-1.5 m³/h
20	1.5-3 m³/h	1-3 m³/h
25	3-6 m³/h	1.26 m³/h
40	8-15m3h	5-15 m³/h
50	12-24m3h	8-24 m³/h
65	20-40m3h	10-40 m³/h
80(light type)	20-40m3h	10-40 m³/h
80(heavy type)	30—60m3h	15—60 m³/h
100	40-100m3h	20-100 m³/h
150	90-190m3h	56-190 m³/h
200	170-340m3h	68-340 m³/h

High-Accuracy and high-viscosity oval gear flowmeter (0.2%)

Model	LC—NA	LC—NE	LC-NB High-viscosity
	High-viscosity iron casting type	High-viscosity cast steel type	stainless steel type
Nominalpressure MPa	1.6	1.6、2.5、4.0、6.3	1.6、2.5、4.0、6.3
Medium temperature	Conventional pointer type: -20~+80℃；
	High-temperature pointer type: -20~+200℃；
	Conventional LCD type: -20~+60℃；
	High-temperature LCD type: -20~+150℃；
Accuracy	0.20%
Nominal diameter	Viscosity: 200—1000mPa.s	Viscosity: 1000-2000mPa.s
10	0.08-0.3 m³/h	0.06-0.2 m³/h
15	0.3-1.0 m³/h	0.2-0.7 m³/h
20	0.6-2.1 m³/h	0.5-1.5 m³/h
25	1-4.2 m³/h	0.8-3 m³/h
40	3-10.5 m³/h	2-7.5 m³/h
50	4-16.8 m³/h	3-12 m³/h
65	8-28 m³/h	6-20 m³/h
80(light type)	8-28 m³/h	6-20 m³/h
80(heavy type)	10-42 m³/h	8-30 m³/h
100	15-70 m³/h	12-50 m³/h
150	34-133 m³/h	30-95 m³/h
200	56-238 m³/h	50-170 m³/h

Get a Quote of High Temperature Flow Meter with Oval Gear Now

Sino-Inst’s high temperature flowmeter can measure the flow of 300℃ medium. We can customize flowmeters of various materials. Our flowmeters can measure and adapt to various extreme environments. Sino-Inst is your best instrument measurement partner. Please inquire now.

Products Categories

Coriolis Mass Flow Meter

Thermal Gas Mass Flow Meter

Differential Pressure Flow Meter

Electromagnetic Flowmeter

Ultrasonic Flow Meter

Vortex Flowmeter

Turbine Flowmeter

Positive Displacement Flow Meters

Compact Pressure Sensor/Transmitter

High Temperature Pressure Transmitter

Cryogenic Pressure Transducer

High Temperature Melt Pressure Transmitter

Explosion-Proof Pressure Transmitter

Differential Pressure Transmitter

Hydrostatic Level Transmitter

Ultrasonic Level Transmitter

Radar Level Meter

Paperless Recorder

Solid Powder Flowmeter

Float Level Sensors / Switches

Capacitive level sensor

Level Switches/Controllers

Get A Free Quote

Applications of High Temperature Flow Meter with Oval Gear

High temperature oval gear flow meters are particularly suitable for measuring the flow of high temperature and high viscosity liquids. The following are its main application areas:

Crude oil transportation and metering:

During the process of crude oil extraction, storage and transportation, high temperature oval gear flow meters can accurately measure the flow of high temperature crude oil.

Finished oil metering:

It is used to measure the flow of finished oil such as diesel and gasoline, in oil depots, gas stations, etc.

High-temperature liquid medium metering:

Many liquid media need to react and transport under high temperature conditions. such as resins, asphalt, etc.

Corrosive medium measurement:

Some chemical media are corrosive. The material can be selected from stainless steel, PTFE and other corrosion-resistant materials.

High-temperature grease metering:

High temperature grease needs to be measured. such as palm oil, rapeseed oil, etc. High-temperature oval gear flow meters can accurately measure the flow of grease.

Food processing process control:

It is used to measure the flow of high-temperature food liquids, such as jams, syrups, etc.

Heat energy metering:

High temperature oval gear flow meters can be used to measure the flow of high-temperature hot water, providing a basis for heat energy metering.

Biomass power generation:

In the process of biomass power generation, high-temperature liquid media need to be measured, such as thermal oil, etc.

Pharmaceutical industry:

It is used to measure the flow of high-temperature liquid medicines. and it achieves precise control during the production of medicines.

Paper-making industry:

In the paper-making process, high-temperature liquid media such as black liquid and white liquid need to be measured.

More Detail

Order Guide of the Right High Temperature Flow Meter

Whether the measured medium is corrosive to the material
Working temperature, working pressure, working flow, medium viscosity
Pipeline inner diameter and connection method
Is there a pump to transport the medium on site
Display and signal function requirements
Whether signal remote transmission and working power supply are required
Whether explosion-proof is required
Accuracy level

Troubleshooting of Oval Gear Flow Meter

Fault phenomenon	Causes	Measures	Notes
Oval gear does not rotate	1.There are sundries in the pipeline 2.The liquid tested contains more debris;the filter is damaged;the sundries enter the meter and the gear is blocked.	Remove the instrument and pipeline and repair the filter
Leakage of axial sealing coupling	Sealing filler wears or lacks seal oil	Tighten gland or replace packing,fillsealing oil
Unstable pointer rotation	Pointer and washer are loose or rotating parts are dumb	Retighten to eliminate inflexibility
Small flow error is too negative	Elliptical gear collides with the wall of the measuring box due to wear of the bearing or deformation of the measuring cavity	Replace the bearings,repair the metering cavity and gear at the deformed place, make the rotation flexibleand ensure the required clearance	Calibrate after repair
Error changes alot	Large or gaseous flowpulsation	Reduce pulsation and add gas separator
Error is too large but not more than ±1%.	Changes in service life or clearance after maintenance	Re-calibrate and adjust it	For level 0.2 flowmeter,the maximum and minimum change does not exceed ±0.17%
No signal when transmitting	1.The position of transmitting block is improper 2.The polarity is reverse	Re-adjust position,move left and right Re-wire it (+is connected to red wire,-is connected to black wire)
